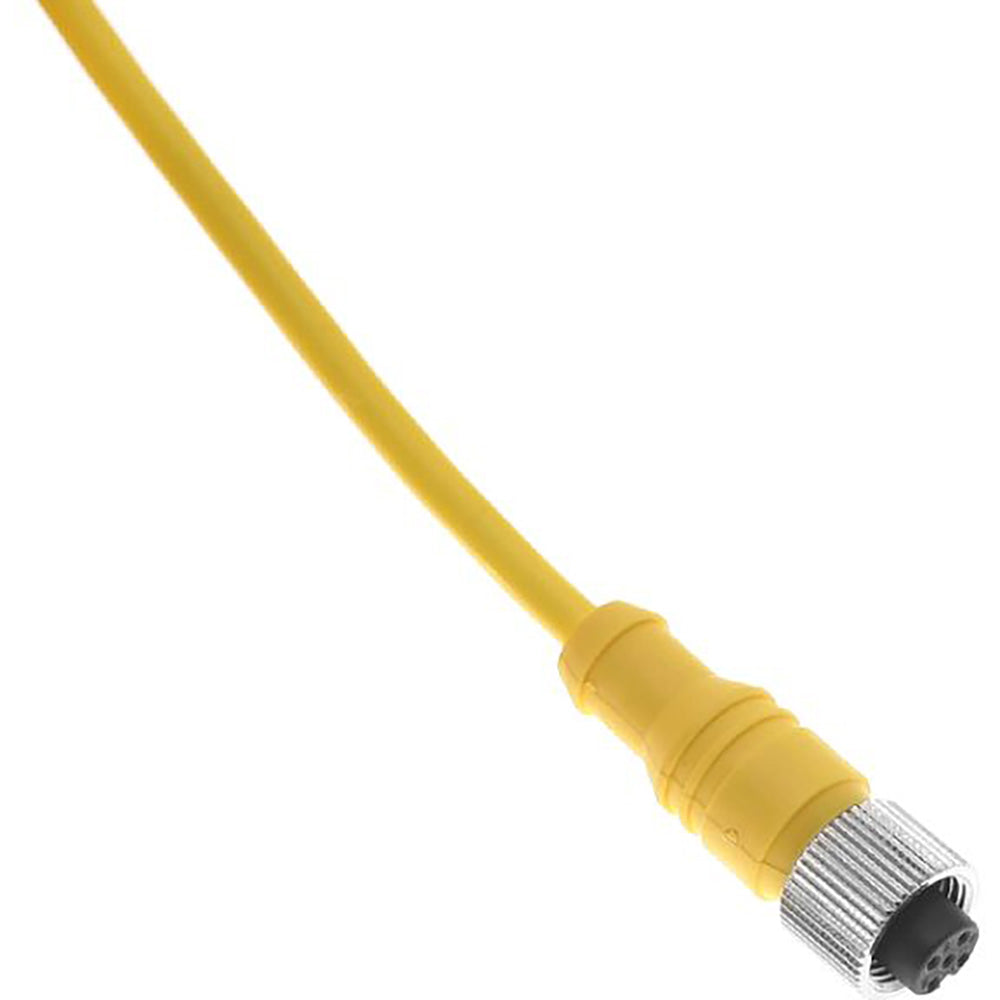

Mencom MDC-5FPX-5M M12 cordset 5 pole female straight 18 AWG 4 A (5 m)

Product Description

The Mencom MDC-5FPX-5M is an M12 female straight cordset with a 5-pin insert and 18 AWG conductors, supplied as a 5 meter molded cable assembly. It is rated 300 V and 4 A, features gold-plated copper alloy contacts and an oil-resistant PVC jacket, and is rated IP69 with an operating range of -40 C to 105 C for industrial connectivity applications such as sensors, actuators, and field wiring.

• M12 female straight connector, 5-pin insert, 18 AWG conductors, 5 m length
• Gold-plated copper alloy contacts, oil-resistant PVC jacket, rated 300 V and 4 A
• Ingress protection IP69; operating temperature -40 C to 105 C

Product Highlights

Molded Micro-DC (M12) cordset for industrial plug-and-play connectivity; 5-pin, 18 AWG, 5 m, IP69, 300 V/4 A.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-5FPX-5M

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MDC-5FPX-5M
• Series: MDC Series
• Connector Type: M12 female
• Connector Orientation: Straight
• Pin Count: 5
• Wire Gauge: 18 AWG
• Cable Length: 5 meters (16.4 ft)
• Cable Type: Molded single-ended cordset
• Jacket Material: PVC (oil resistant)
• Jacket Color: Yellow
• Contacts: Gold-plated copper alloy
• Insulator / Body Material: Polyamide / Yellow PVC body
• Rated Voltage: 300 V
• Rated Current: 4 Amps
• Ingress Protection: IP69
• Operating Temperature: -40 C to 105 C (-40 F to 221 F)
• Coupling Thread / Mating Thread: M12
• Coupling Nut: M12 coupling nut, nickel plated brass
• Cable O.D.: 0.29 inches
• Approvals / Certifications: UL and CUL listed
• Numeric ID: 2510412
• Coding: A
• Connector Standard / Type: Micro-DC (MDC)
