Mencom MDC-4MP-4M Cordset 4 A 300 V (4M)

Product Description

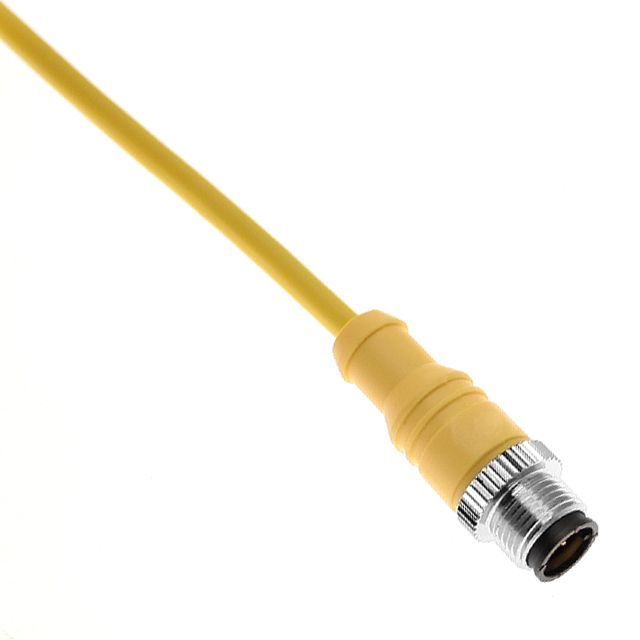

The Mencom MDC-4MP-4M is an M12 4-pole male straight cordset with a 4 meter PVC-jacketed cable. It is rated 300 V and 4 A, uses 22 AWG conductors, and features a nickel-plated brass coupling nut. The molded assembly has an IP69 rating and a 0.2 inch cable outer diameter, suitable for industrial connectivity such as sensor and actuator connections in harsh environments.

• M12 A-coded 4-pole male straight connector with nickel-plated brass coupling nut
• 4 meter (12 ft) PVC-jacketed cable, 22 AWG conductors, 0.2 in cable outer diameter
• Electrical rating 300 V, 4 A; IP69 protection; no shielding or ground wire

Product Highlights

M12 4-pin male straight cordset, 4 m PVC cable, 22 AWG, 4 A 300 V, nickel-plated brass coupling nut, IP69

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-4MP-4M

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MDC-4MP-4M
• Product Type: Cordset
• Series: MDC (A-coded)
• Connector: M12 male straight
• Pin Count: 4
• Orientation: Male straight
• Mating Thread: M12
• Coupling Nut Material: Nickel plated brass
• Cable Length: 4 m
• Cable Length (feet): 12
• Cable Jacket Material: PVC
• Wire Gauge: 22 AWG
• Cable Outer Diameter: 0.2 in
• Voltage Rating: 300 V
• Current Rating: 4 A
• IP Rating: IP69
• Shielding: No
• Ground Wire: No
• Weight: 0.351 lb
