Mencom MDC-4FR-BM-1M Micro-DC cordset 4 A (1 m straight)

Product Description

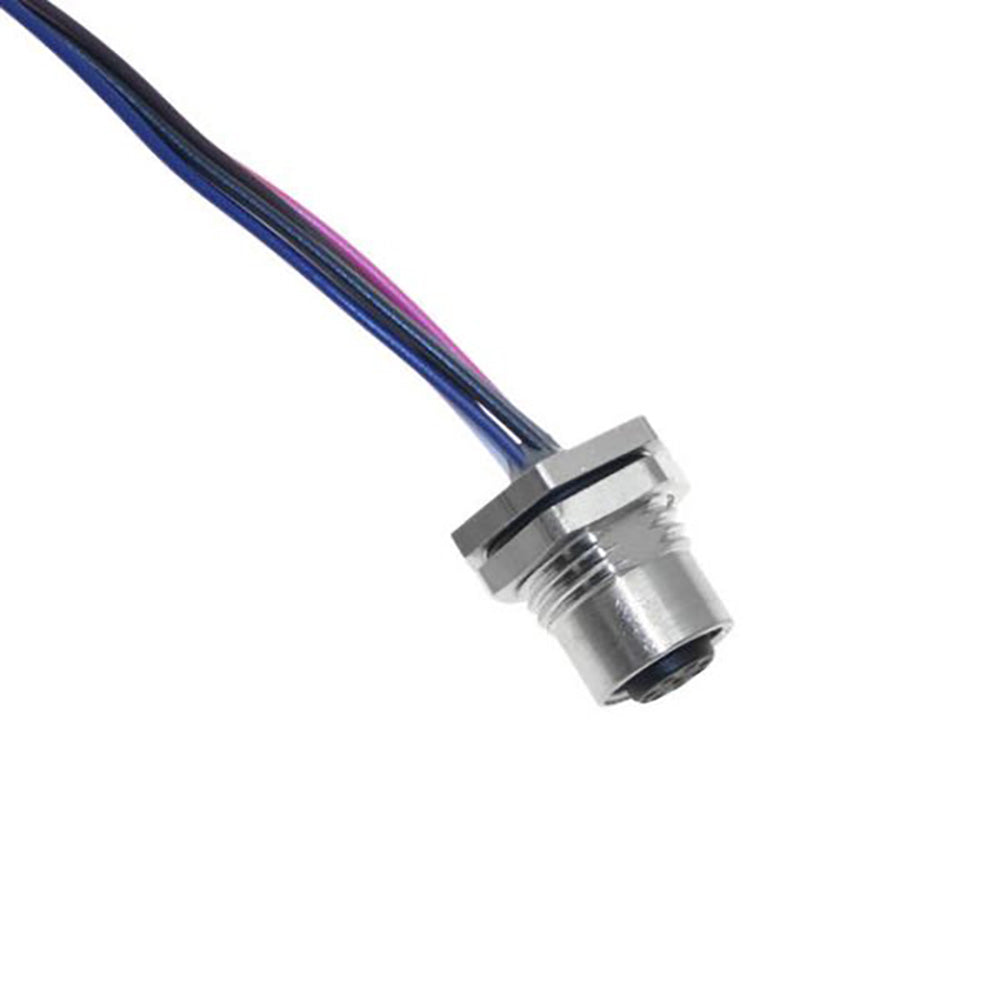

The Mencom MDC-4FR-BM-1M is a Micro-DC cordset featuring a back-mount M12 female receptacle to flying leads with a 1 m integrated cable. It is rated 4 A and supports up to 300 VAC / 300 VDC, with 22 AWG conductors and PG9 mounting threads. The assembly provides IP67 environmental protection, an operating range of -40 to 105 C, and cULus and RoHS compliances for industrial sensor and actuator connectivity.

• 4-pole M12 x 1.00 female back-mount receptacle to flying leads; 1 m integrated cable
• Electrical rating: 4 A, max 300 VAC / 300 VDC; 22 AWG conductors
• IP67 protection; operating temperature -40 to 105 C; PG9 mounting threads; nickel-plated brass receptacle

Product Highlights

Back-mount M12 female cordset, 1 m cable, IP67, 4 A rating

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-4FR-BM-1M
• Country of Origin: US

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: MDC-4FR-BM-1M
• Series: Micro-DC
• Product Type: Cordset / Receptacle to Flying Leads
• Connector Class: Micro (M12)
• Connector Thread: M12 x 1.00
• Connector Type (End 1): M12 female
• Connector Type (End 2): Wire leads
• Poles: 4
• Number of Conductors: 4
• Wire Gauge: 22 AWG
• Current Rating: 4 A
• Max Voltage: 300 VAC, 300 VDC
• Cable Length: 1 m
• Cable Type: Single ended
• Jacket Material: Polyvinyl Chloride (PVC)
• Mounting: Back mount
• Mounting Threads: PG9
• Orientation / Angle: Straight
• Protection Rating: IP67
• Operating Temperature: -40 to 105 C
• Material / Finish: Nickel plated brass (receptacle)
• Approvals / Certifications: cULus
• Compliance: RoHS compliant
• Net Weight: 0.08 lbs
• Country of Origin: US
• ECCN: EAR99
• UNSPSC Code: 39120000
