Mencom MDC-4FR-BM-1M-18 MDC Receptacle 4-Pole Female Straight 4 A (1 m)

Product Description

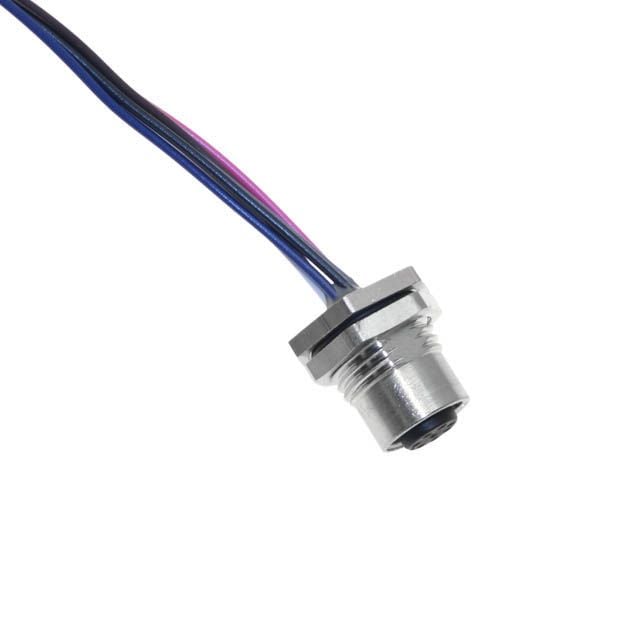

The Mencom MDC-4FR-BM-1M-18 is a 4-pin Micro-DC (M12) back-mount female receptacle with a 1 m PVC-jacketed cable and 18 AWG conductors. It is rated 4 A and 300 V, features a nickel-plated brass shell with PG-09 mounting threads, and carries an IP69 ingress protection rating. The connector provides a straight M12 coupling for industrial sensor, actuator, and quick-disconnect applications.

• 4-pin female straight Micro-DC (M12) receptacle with 1 m PVC cable and 18 AWG conductors
• Electrical rating: 4 A, 300 V; termination: discrete; nickel-plated brass shell with PG-09 back-mount
• Ingress protection IP69, M12 x 1.00 coupling, operates in -40 to 105 C, cULus approved

Product Highlights

Back-mount 4-pin M12 female receptacle with 1 m PVC cable, 18 AWG, 4 A/300 V rating, nickel-plated brass shell, and IP69 protection.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-4FR-BM-1M-18

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MDC-4FR-BM-1M-18
• Series: MDC (A-coded)
• Product Type: Receptacle (back-mount with attached cable)
• Component Type: Receptacle
• Connector Class: Micro (M12)
• Pin Count: 4
• Number of Wires: 4
• Gender: Female
• Orientation: Straight
• Mating Thread: M12 x 1.00
• Mounting Thread: PG-09
• Mounting Style: Back Mount
• Wire Gauge: 18 AWG
• Cable Length: 1 m (39.37 in)
• Cable Jacket Material: PVC
• Termination: Discrete
• Voltage Rating: 300 V (300 VAC / 300 VDC)
• Current Rating: 4 A
• IP Rating: IP69
• Shell Material: Nickel plated brass
• Shielding: No
• Ground Wire: No
• Operating Temperature: -40 to 105 C
• Approvals: cULus
• Weight: 0.3 lbs
• Color Code: DC
