Mencom MDC-4FP-FW07-R-SS Field Wireable 4 Pole Female 250 V 4 A (Right Angle)

Brand: MENCOM
SKU: MDC-4FP-FW07-R-SS
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$26.29
$26.29
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

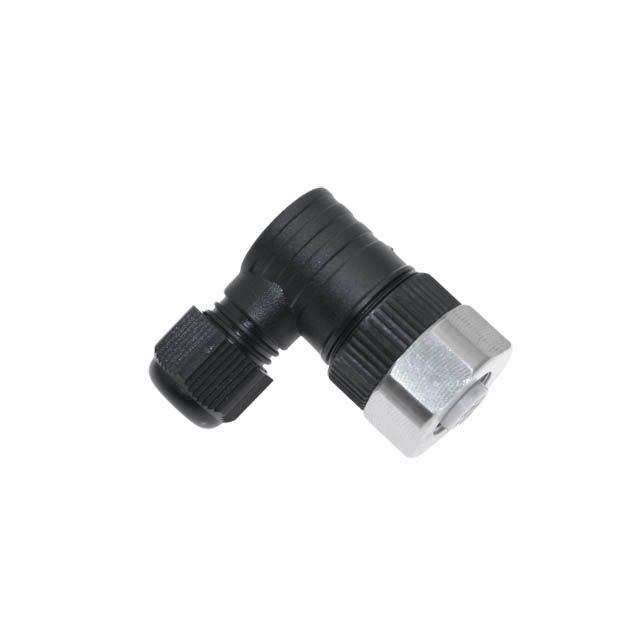

Mencom MDC-4FP-FW07-R-SS is a field-wireable 4-pole female M12 (A-coded) connector for right-angle installations. It features a stainless steel shell and M12 coupling nut with single keyway, accepts cable outer diameters 3-6.5 mm (PG07), and supports wire sizes 18-24 AWG. Electrical ratings are 250 V and 4 A, and the connector is IP67 rated for dust and water protection. The connector does not include shielding or a dedicated ground wire.

  • Field-wireable 4-pole M12 (A-coded) female plug in right-angle orientation
  • Electrical rating: 250 V, 4 A; supports 18-24 AWG conductors
  • Stainless steel shell with M12 coupling nut; cable O.D. range 3-6.5 mm (PG07); IP67 ingress protection

Product Highlights

Field-wireable 4-pole M12 female right-angle connector; 250 V/4 A; accepts 3-6.5 mm cable O.D.; IP67

Product Information

Standard Information

  • Brand: MENCOM
  • Manufacturer Part Number: MDC-4FP-FW07-R-SS

Technical Specifications

  • Brand: Mencom
  • Manufacturer: Mencom
  • Manufacturer Part Number: MDC-4FP-FW07-R-SS
  • Series: MDC (A-coded)
  • Product Type: Field-wireable M12 connector
  • Component Type: Field Wireable
  • Pin Count: 4
  • Gender: Female
  • Orientation: Right-angle
  • Mating Thread / Type: M12 (A-coded)
  • Coupling Thread Gender: Female
  • Voltage Rating: 250 V
  • Current Rating: 4 A
  • Wire Gauge (AWG): 18-24 AWG
  • Cable O.D. Range: 3 - 6.5 mm (PG07)
  • Gland Range (mm): 3-6.5
  • Shell / Coupling Material: Stainless Steel
  • IP Rating: IP67
  • Shielding: No
  • Ground Wire: No
  • Color Code: DC
  • RoHS Compliance: RoHS Compliant
  • Weight: 0.10 lb
