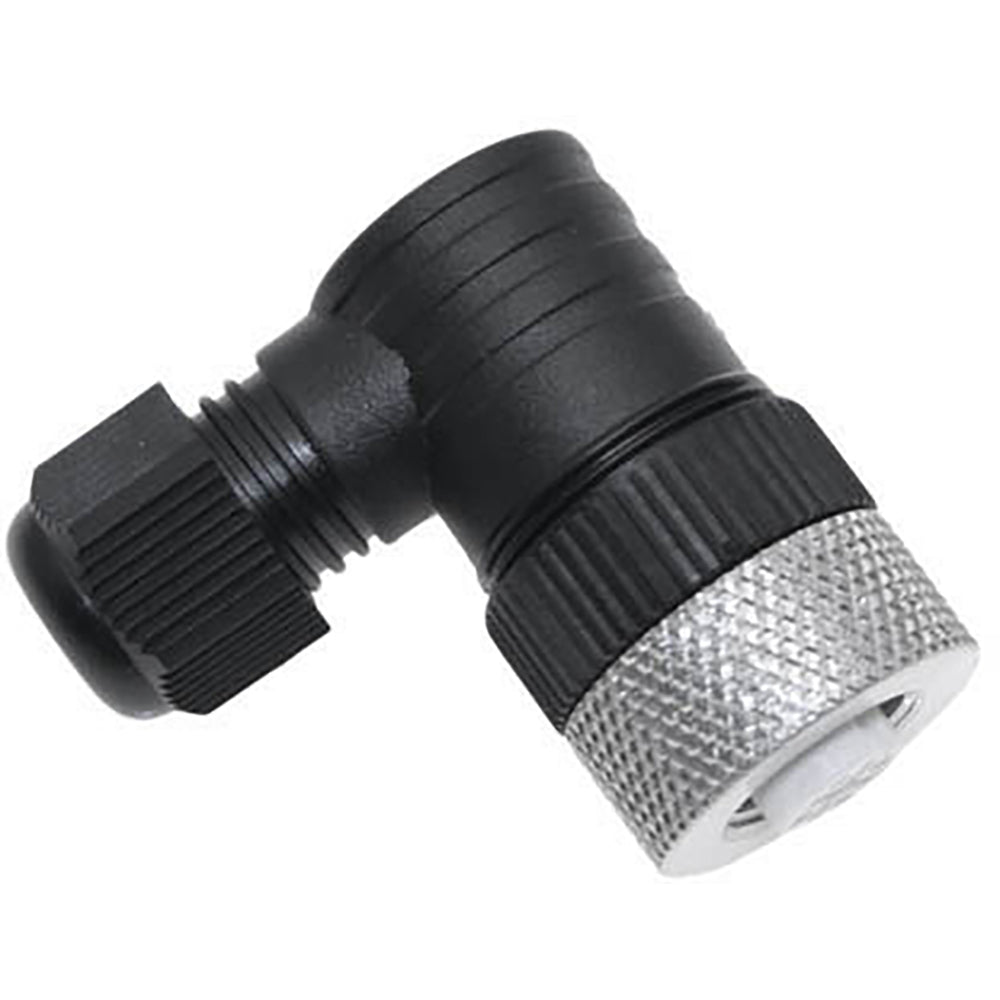

Mencom MDC-4FP-FW07-R M12 4-Pin Field Wireable Receptacle (Right Angle)

Product Description

Mencom MDC-4FP-FW07-R is a 4-pin M12 field-wireable right-angle receptacle designed for inline and panel wiring applications. The connector provides screw termination, a 4 A current rating and 250 V voltage rating, and an IP67 environmental rating for protection against dust and water. It accepts 18-24 AWG conductors and is intended for use where a compact, right-angle M12 female receptacle is required.

• Electrical: 4 A current rating, 250 V voltage rating, 4-pin M12 female configuration
• Mechanical: Right-angle orientation, screw termination, accepts 18-24 AWG wire
• Environmental and materials: IP67 rating; nickel-plated brass body; RoHS compliant

Product Highlights

M12 4-pin field-wireable right-angle receptacle with screw termination, IP67 protection, 4 A/250 V ratings, accepts 18-24 AWG conductors

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-4FP-FW07-R
• Country of Origin: United States

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MDC-4FP-FW07-R
• Connector Size: M12
• Connector Type: Receptacle (Socket)
• Number of Pins: 4
• Gender: Female
• Orientation: Right Angle
• Termination: Screw
• Type: Field Wireable
• Current Rating: 4 A
• Voltage Rating: 250 V
• IP Rating: IP67
• Wire Size: 18-24 AWG
• Coding: A coded
• Series: MDC Series
• RoHS: Yes
• Body Finish: Nickel plated brass
• Country of Origin: US
• HTS Code: 8536694020
• ECCN: EAR99
• UNSPSC Code: 39120000
• Category: Computer / Communication Cable/Adaptor
