Mencom MDC-3FPX-5M Micro-DC Cordset 4 A 300 V (5 m Straight)

Product Description

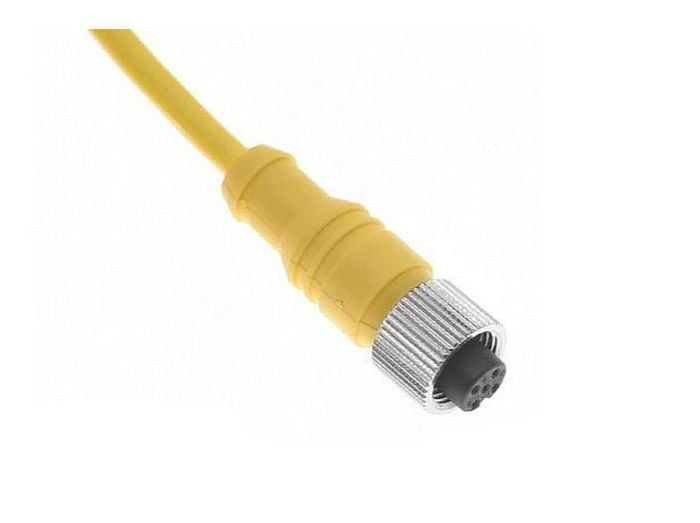

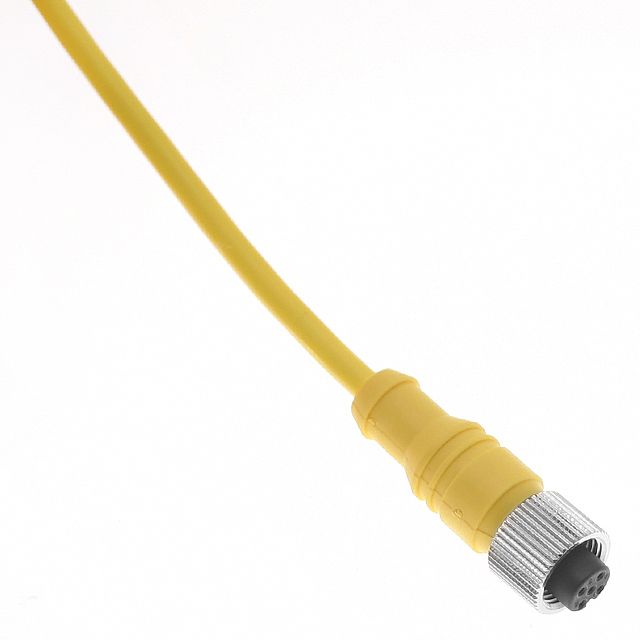

The Mencom MDC-3FPX-5M is a Micro-DC cordset with a straight female M12 x 1.00 connector to flying leads, featuring a 5 m 18 AWG AWM PVC cable. The cordset is rated 4 A and 300 VAC / 300 VDC, has an IP67 protection rating, and uses a nickel-plated brass connector. Operating temperature range is -40 to 105 C and the assembly is supplied in new condition.

• Rated 4 A and 300 VAC / 300 VDC; unshielded signal cordset with Micro (M12) connector class
• 5 m length, 18 AWG AWM PVC cable; cable O.D. 0.29 in; single-ended female to flying leads configuration
• IP67 protection rating; nickel-plated brass connector; operating temperature -40 to 105 C; cULus approved

Product Highlights

M12 x 1.00 straight female to flying leads; 5 m 18 AWG AWM PVC cable; 4 A, 300 VAC/VDC; IP67; -40 to 105 C; nickel-plated brass

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-3FPX-5M

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: MDC-3FPX-5M
• Product Series: Micro-DC
• Product Type: Cordset (Signal)
• Pin Count: 5
• Connector Class: Micro (M12)
• Connector Thread: M12 x 1.00
• Connector Gender: Female (head 1)
• Connector Orientation: Straight
• Connection Configuration: Female to flying leads
• Cable Length: 5 m
• Wire Gauge: 18 AWG
• Cable Type: AWM, PVC
• Cable O.D.: 0.29 in
• Cable Shielding: None
• Current Rating: 4 A
• Voltage Rating: 300 VAC / 300 VDC
• Protection Rating: IP67
• Material: Nickel-plated brass
• Operating Temperature: -40 to 105 C
• Cordset Ends: Single-ended
• Cordset Type: Signal
• Approvals: cULus
• Weight: 0.87 lbs
