Mencom MDC-3FPX-2M MDC 3 Pole Female Cable 4A (2 m)

Product Description

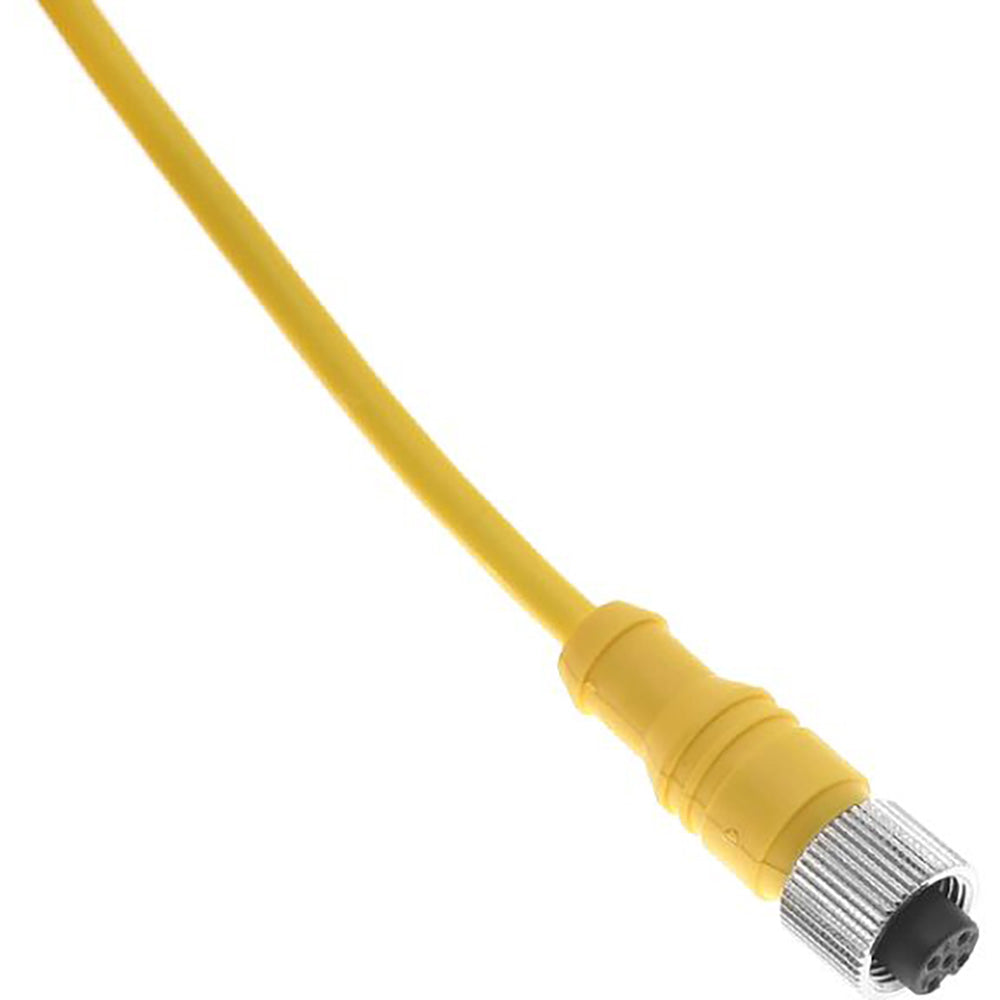

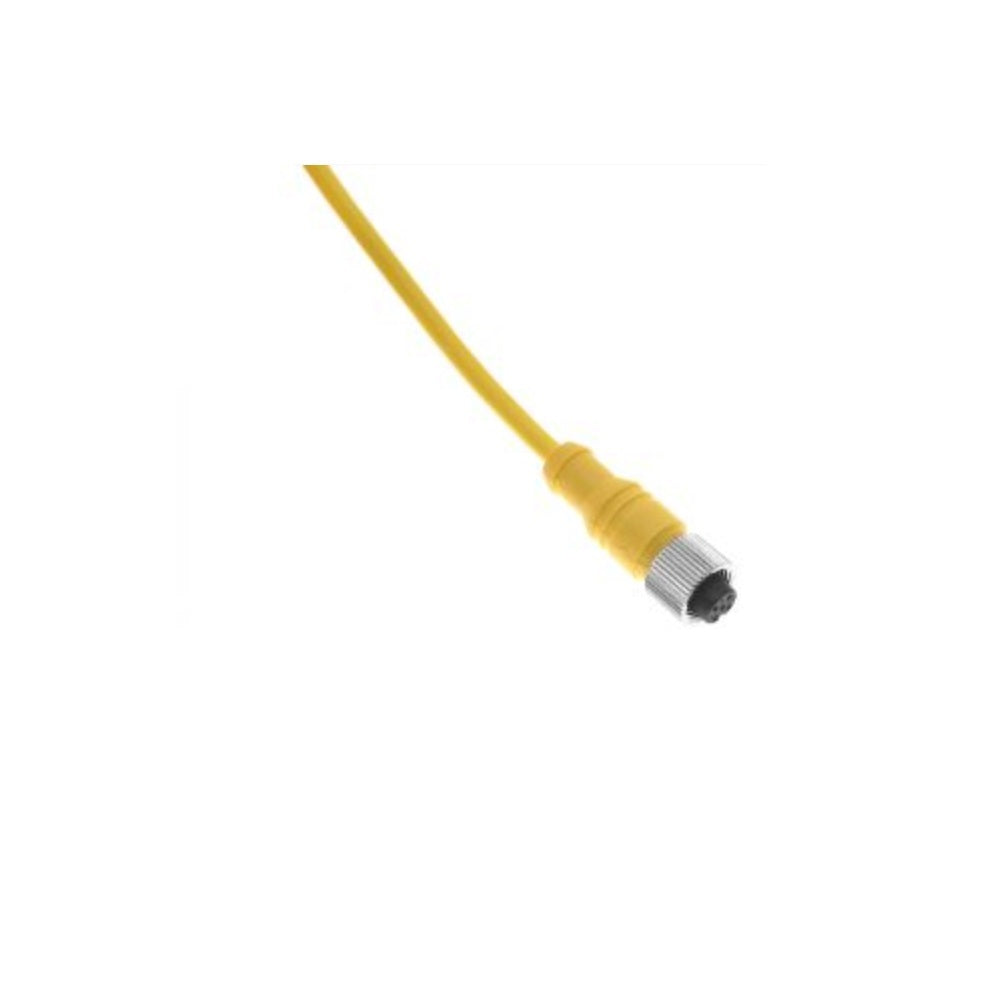

The Mencom MDC-3FPX-2M is a molded MDC (Micro-DC) 3-pole female cable assembly for M12 connections, featuring 18 AWG conductors, a 2 m PVC-jacketed cable and a 4 A current rating. It is rated 300 V, provides IP69 ingress protection, and operates from -40 C to 105 C. The cordset includes gold-plated copper alloy contacts, a polyamide insert, and an M12 coupling nut with an A-code single keyway.

• 3-pin M12 female molded cordset with 18 AWG conductors, 2 m length and 4 A rating
• Rated 300 V; gold-plated copper alloy contacts; polyamide insert; M12 coupling nut with A-code single keyway
• PVC oil-resistant jacket; IP69 ingress protection; operating temperature -40 C to 105 C; UL and CUL listed

Product Highlights

M12 Micro-DC 3-pin female cordset — 18 AWG, 2 m, 4 A, 300 V, IP69, -40 C to 105 C

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-3FPX-2M
• Country of Origin: United States

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MDC-3FPX-2M
• Connector Type: MDC (Micro-DC) / M12
• Pin Count: 3
• Gender: Female
• Cable Length: 2 m (78.7402 in)
• Conductor Size: 18 AWG
• Wire Gauge: 18 AWG
• Rated Current: 4 A
• Rated Voltage: 300 V
• Cable Jacket Material: PVC
• Cable Jacket Properties: Oil resistant
• Contacts: Gold plated copper alloy
• Insert Material: Polyamide
• Coupling Nut Material: Nickel plated brass
• Coupling Thread / Mating Type: M12
• Keyway: A-code (single keyway)
• Orientation: Female straight
• Ingress Protection: IP69
• Operating Temperature: -40 C to 105 C
• Pinout: Pin 1 - Brown; Pin 2 - No wire; Pin 3 - Blue
• Approvals: UL and CUL Listed
• Cable O.D.: 0.29 in (diameter)
