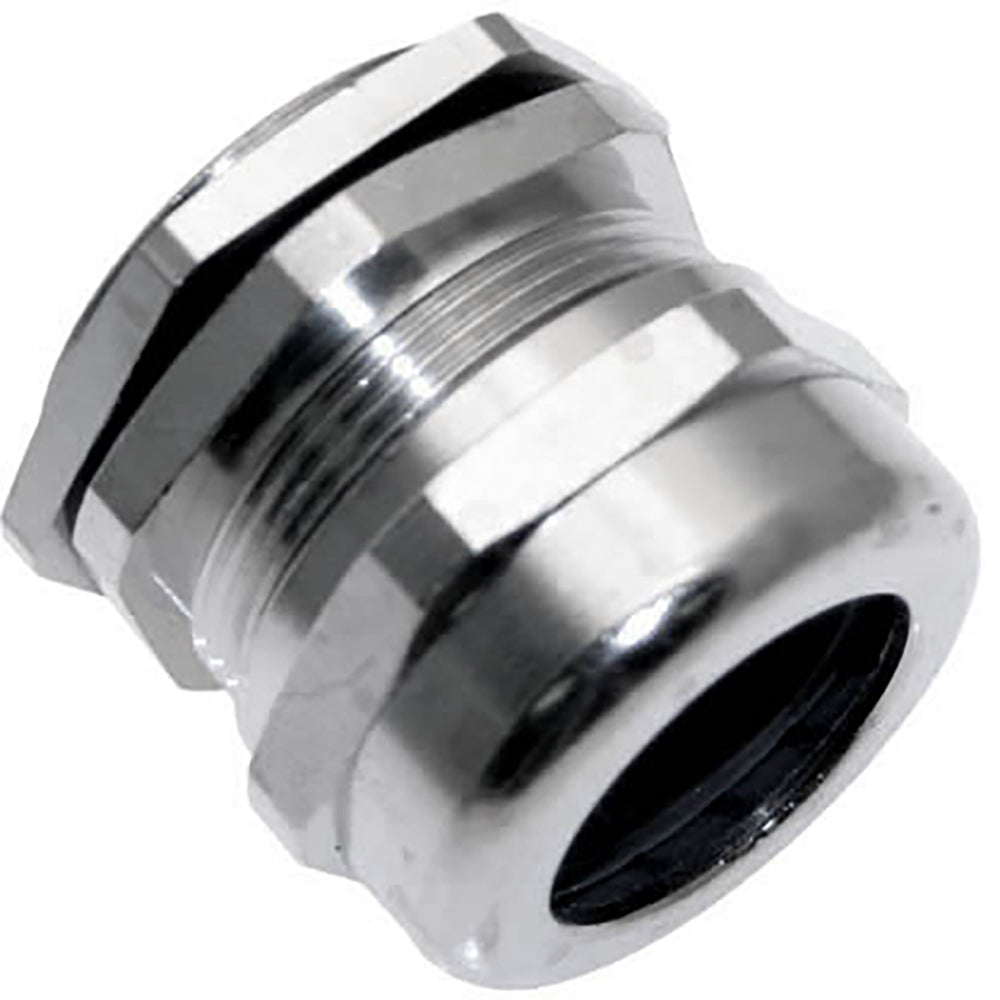

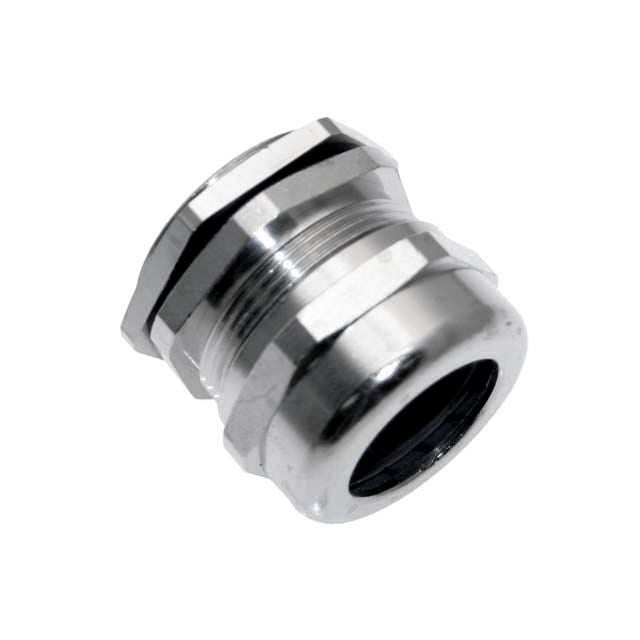

Mencom MCG-29 Metal Cable Gland PG29 (0.709 - 0.984 in)

Product Description

Mencom MCG-29 is a metal cable gland for PG29 thread entries that provides sealed cable entry and strain relief for single round cables. It accommodates cord diameters from 0.709 to 0.984 in, is constructed of nickel plated brass, and is rated IP68 for dust and water protection. The gland includes an O-ring and lock nut and is suitable for industrial enclosure cable entry applications.

• PG29 thread size; accepts 0.709–0.984 in cord diameter for single round cables
• Nickel plated brass construction with O-ring and lock nut for a watertight seal (IP68)
• Provides strain relief and wide clamping range; bushing grip type for cable entry

Product Highlights

PG29 metal cable gland; nickel plated brass; IP68 sealed cable entry

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MCG-29
• Country of Origin: Germany

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MCG-29
• Product Type: Cable Gland
• Series: Metal Gland Series
• Thread Size: PG29
• Hub Size: PG29
• Mounting Thread: PG-29
• Cord Diameter Range: 0.709 - 0.984 in
• Cable Diameter Range (alternate): 0.71 - 0.98 in
• Material: Nickel plated brass
• Protection Rating: IP68
• Comparable Standard: NEMA 6P
• Number of Cables: 1
• Cable Style: Round
• Type: Bushing grip
• Includes: O-ring; lock nut; nut; gasket/O-ring
• Gender: Male
• RoHS Compliance: RoHS Compliant
• UNSPSC Code: 27110000
• Country of Origin: DE
