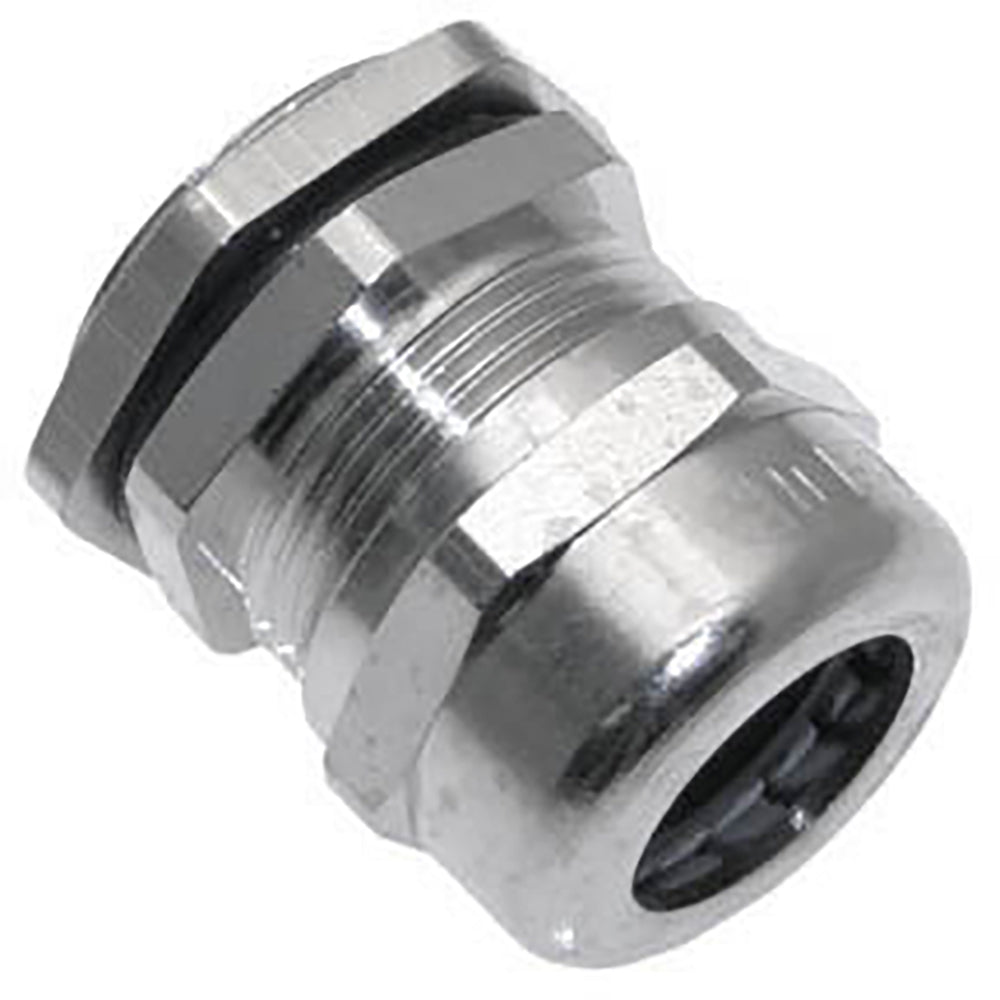

Mencom MCG-16 PG16 Metal Cable Gland 0.394-0.551 (Straight)

Product Description

The Mencom MCG-16 is a PG16 metal cable gland designed to provide strain relief and an IP68 watertight seal for round cables. Constructed from nickel plated brass, it accepts cable diameters from 0.394 to 0.551 in and includes an integral O-ring and lock nut for sealing. The gland is a straight, single-cable entry suitable for metric, PG, and NPT thread systems where PG16 is required.

• PG16 threaded metal cable gland with nickel plated brass construction and integral O-ring
• Rated IP68 for protection against dust and water; provides strain relief for round cables
• Accepts cable diameters 0.394–0.551 in; includes lock nut for secure mounting

Product Highlights

PG16 nickel plated brass cable gland, IP68 sealed, accepts 0.394–0.551 in round cables; includes O-ring and lock nut.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MCG-16

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MCG-16
• Product Type: Cable Gland
• Material: Nickel plated brass
• Thread Size: PG16
• Accepted Cable Diameter: 0.394 - 0.551 in
• Cable Style: Round
• Number of Cables: 1
• Angle: Straight
• IP Rating: IP68
• Seal/Gasket: O-ring included
• Includes Nut: Lock nut included
• Type: Bushing Grip
