Mencom MAO-24.40 standard rectangular hood size 104.27 4 pegs side M40 entry high construction

Product Description

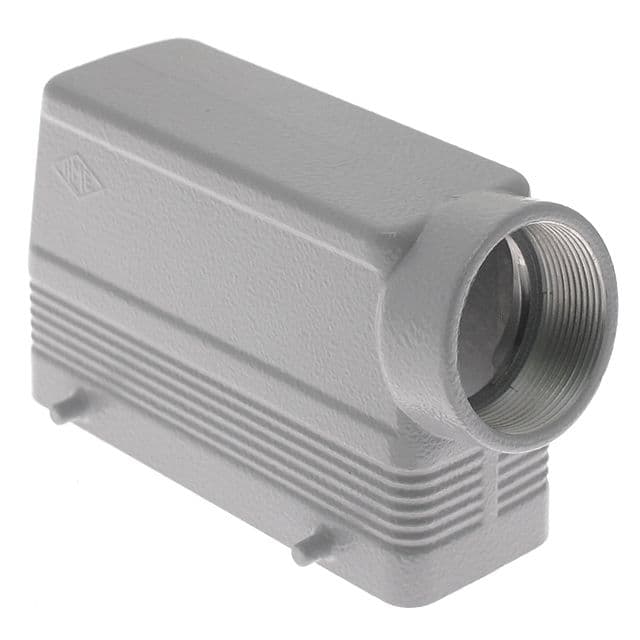

The Mencom MAO-24.40 is a standard aluminum die-cast rectangular hood (male) for ILME CN series connectors, size 104.27. It is a high-construction metal enclosure with four pegs and a side M40 cable entry for a single entry configuration. The hood uses a patented stainless-steel locking system to maintain IP66/IP67 protection through 500 mating cycles and is rated for -40 C to +125 C operating temperature.

• Aluminum die-cast metal hood, high-construction design with four pegs and standard housing/insert type
• Side M40 cable entry, single entry configuration, insert/ enclosure dimension 104.27
• Patented stainless-steel locking system; rated IP66/IP67 and operating temperature -40 C to +125 C

Product Highlights

Aluminum die-cast rectangular hood, size 104.27, side M40 entry, 4 pegs, IP66/IP67, -40 C to +125 C

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MAO-24.40

Technical Specifications

• Brand: MENCOM
• MPN: MAO-24.40
• Product Type: Rectangular Connector Hood
• Component Type: Hood (male)
• Series: ILME CN
• Housing/Insert Type: Standard
• Material: Aluminum die-cast (metal)
• Construction: High construction
• Size / Insert Dimension: 104.27 (model/insert size)
• Pegs: 4
• Hood Entry: Side
• Hood Thread: M40
• Number of Entries: 1 (single entry)
• Gender: Male
• IP Rating: IP66/IP67
• Temperature Range: -40 C to +125 C
• Gasket/O-Ring: No
• Cover: No
• Locking System: Patented stainless-steel locking system (maintains IP protection after 500 mating cycles)
