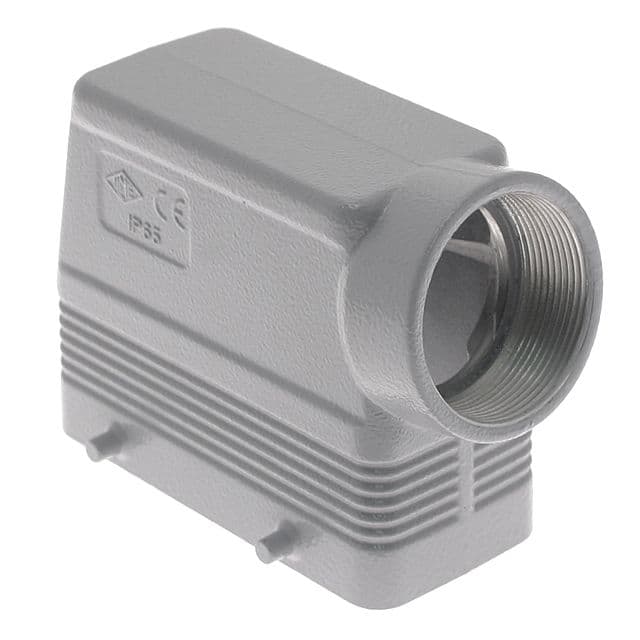

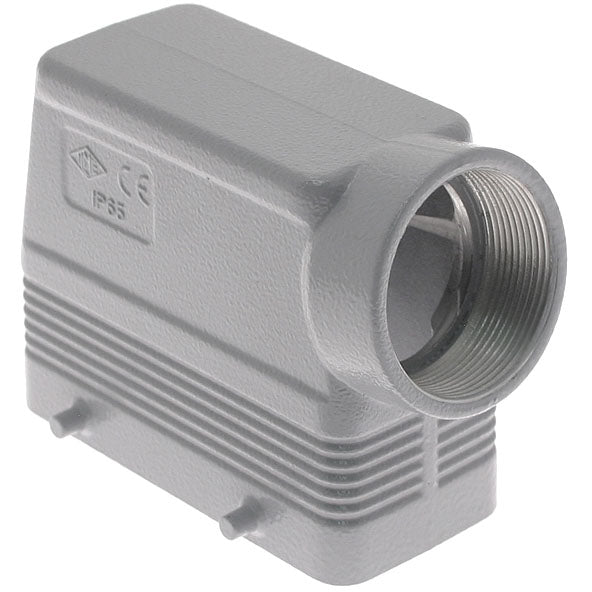

Mencom MAO-16.40 Rectangular Hood Size 77.27

Product Description

The Mencom MAO-16.40 is a rectangular connector hood featuring an aluminum die-cast high-construction enclosure for heavy-duty industrial connectors. It provides a side M40 cable entry, four mounting pegs, and a stainless steel locking system. The hood is compatible with ILME CN series inserts, rated IP66/IP67 for ingress protection, and rated for operation from -40 C to +125 C as a single-entry male housing without a cover or gasket.

• Side M40 cable entry with four pegs for secure mounting and size 77.27 enclosure/insert dimension
• Aluminum die-cast construction with stainless steel locking; male, single-entry hood
• Ingress protection IP66/IP67; temperature range -40 C to +125 C; compatible with ILME CN series inserts

Product Highlights

Side-entry M40 rectangular hood, size 77.27; aluminum die-cast metal with stainless steel locking; IP66/IP67; -40 C to +125 C; 4 pegs; no cover or gasket.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MAO-16.40

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MAO-16.40
• Manufacturer: Mencom
• Product Type: Rectangular Connectors (Hood)
• Component Type: Hood
• Gender: Male
• Size: 77.27
• ILME Series: CN
• Hood Entry: Side
• Hood Thread: M40
• Number Of Entries: 1
• Pegs: 4
• Enclosure Material: Aluminum die-cast (metal)
• Locking System: Stainless steel locking system
• Ingress Protection: IP66/IP67
• Temperature Range: -40 C to +125 C
• Cover: No
• Gasket: No
• Weight: 0.389 lb
