Mencom M25-3/4 M25 Male Thread to 3/4 NPT Female Thread Adapter (1.1 in)

Product Description

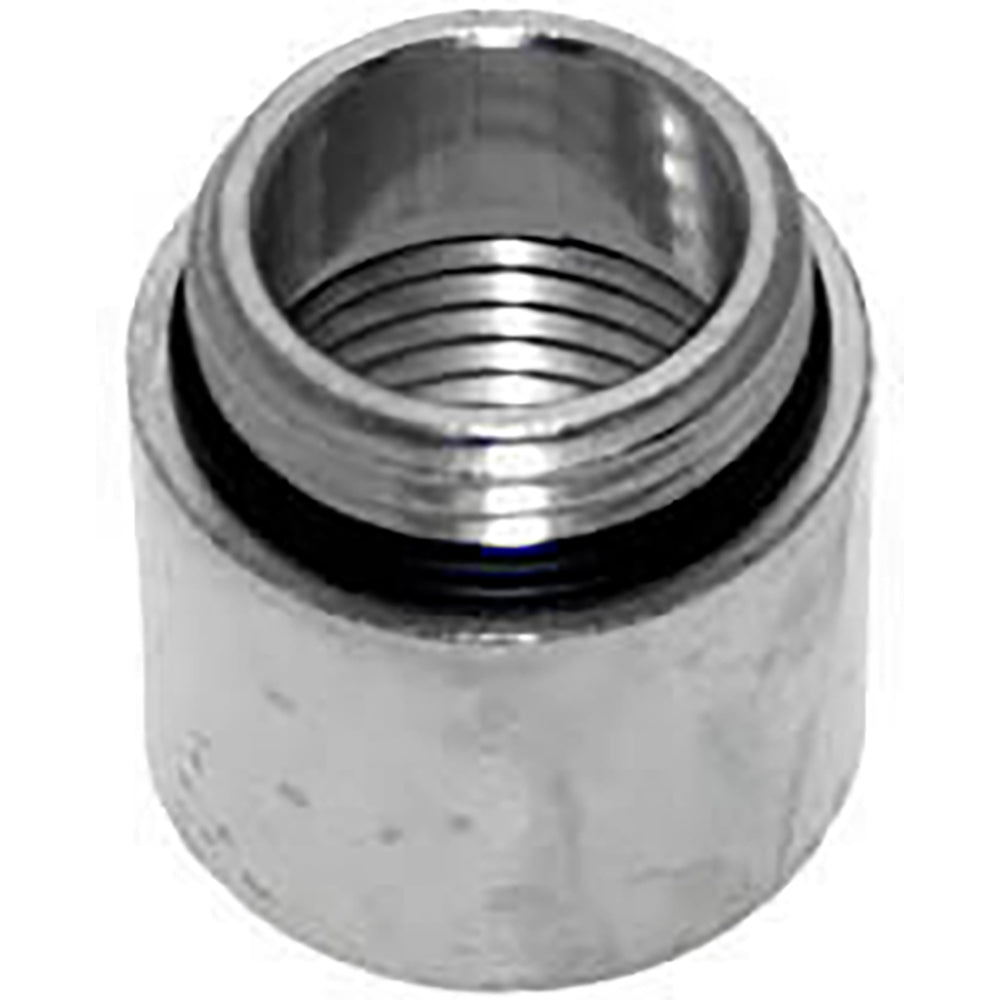

Mencom M25-3/4 is a nickel-plated brass adapter that converts an M25 male mounting thread to a 3/4 NPT female thread for cable entry and enclosure applications. The metal adapter provides a compact transition for cable glands, conduit, or panel adaptations and is commonly used with a BUNA-N O-ring for sealing. The unit measures approximately 1.1 inches in length and is intended for industrial enclosures and panels.

• Converts metric M25 male thread to 3/4 NPT female for cable glands and panel adaptations
• Nickel-plated brass construction; compact 1.1 in length; weight approximately 0.1198 lbs
• Male/female connection type; compatible with BUNA-N O-ring sealing; suitable for industrial enclosures

Product Highlights

Metric-to-NPT thread adapter in nickel-plated brass for cable entry and enclosure conversions

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: M25-3/4
• Country of Origin: US

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: M25-3/4
• Product Type: Cable gland adapter
• Component Type: Adapter
• Series: Metal Gland
• Material: Nickel-plated brass
• Male Thread: M25 (M25x1.5)
• Female Thread: 3/4 NPT
• Connection Type: Male/Female
• Length: 1.1 in
• Weight: 0.1198 lbs
• Sealing: BUNA-N O-ring
• RoHS: Yes
• Country of Origin: US
• UNSPSC Code: 39120000
• ECCN: EAR99
• Gender: Male
