Mencom LP1-CH1-RJ45-R low profile panel interface connector 10 A (low profile)

Product Description

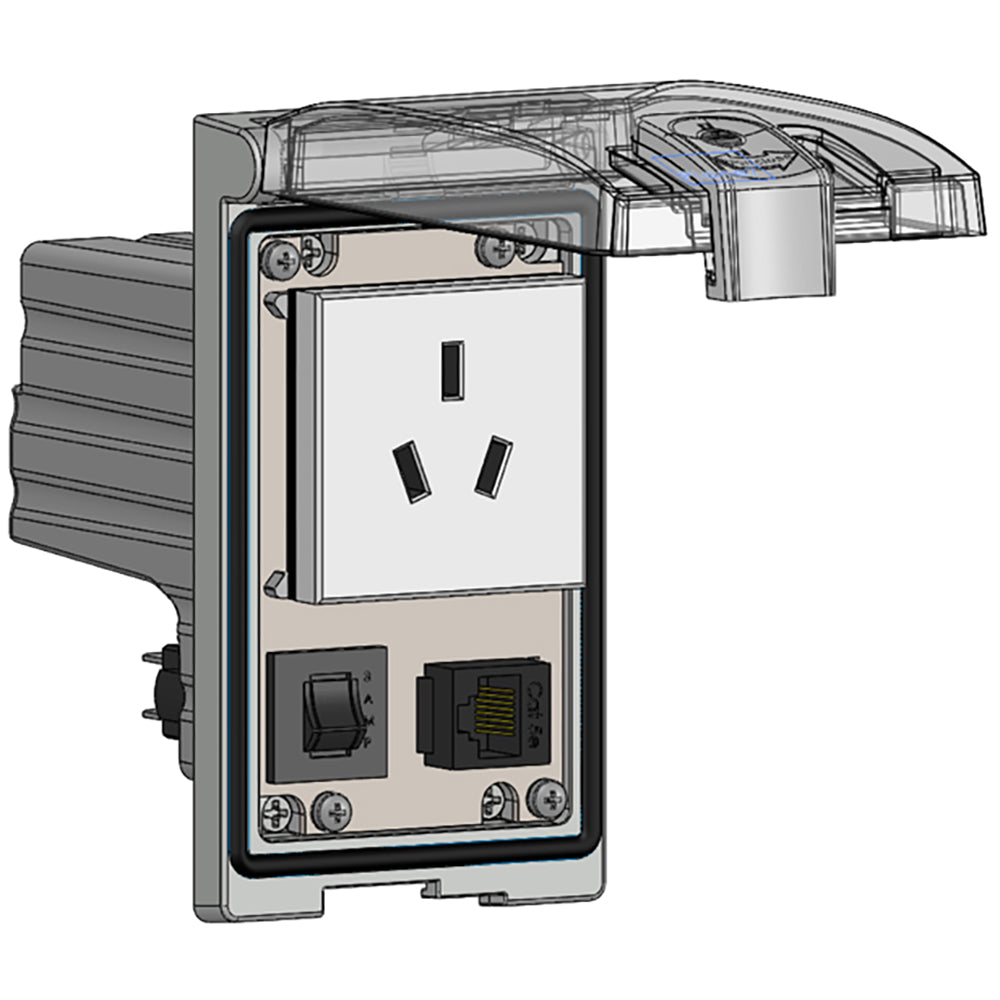

The Mencom LP1-CH1-RJ45-R is a low-profile panel interface connector that combines a China 10 A power receptacle, a female-to-female RJ45 Ethernet port, and a 3 A resettable fuse in a single LP1 cover. The IP65-rated housing mounts to the outside of control panels, features a clear polycarbonate cover and sliding lock, and is approximately 75% lower than a standard PIC to provide external PLC or PAC access without opening the cabinet.

• Integrated China 10 A power receptacle, female-to-female RJ45 Ethernet port, and 3 A resettable fuse in one low-profile LP1 housing.
• IP65 ingress protection with UL Type 4 and UL Type 12 housing ratings, clear polycarbonate front cover, and sliding lock mechanism for external panel access.
• Panel-mount design for up to 5 mm panel thickness; nickel-plated zinc body, PBT latch and lock, nitrile (UL70) gasket, torque 0.9 N·m (0.675 lb-ft).

Product Highlights

Low-profile IP65 panel interface with China 10 A outlet, RJ45 data port, and 3 A resettable fuse.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: LP1-CH1-RJ45-R
• Country of Origin: China

Technical Specifications

• Brand: Mencom
• Manufacturer: Mencom
• Manufacturer Part Number: LP1-CH1-RJ45-R
• Model: LP1-CH1-RJ45-R
• Series: LP1
• Outlet: China 10 A receptacle
• Data Connector: Female-to-female RJ45 Ethernet
• Reset Rating: 3 A resettable fuse
• Current Rating: 10 A (outlet), 3 A (reset)
• Connection Type: RJ45 + resettable fuse
• Mounting Type: Panel mount
• Housing: Single cover low profile housing
• Body Material: Nickel plated zinc
• Front Cover Material: Polycarbonate
• Latch and Lock Material: PBT
• Gasket Material: Nitrile (UL70)
• Ingress Protection: IP65
• Housing Ratings: UL Type 4, UL Type 12
• Panel Thickness: 5 mm max (≈0.20 in)
• Torque: 0.9 N·m (0.675 lb·ft)
• RoHS Compliance: RoHS Compliant
• Country of Origin: China
