Mencom GF-RJ45-USB-03-R-32 Panel interface connector with GFCI duplex outlet 120 V (Size 32) GF-RJ45-USB-03-R-32

Product Description

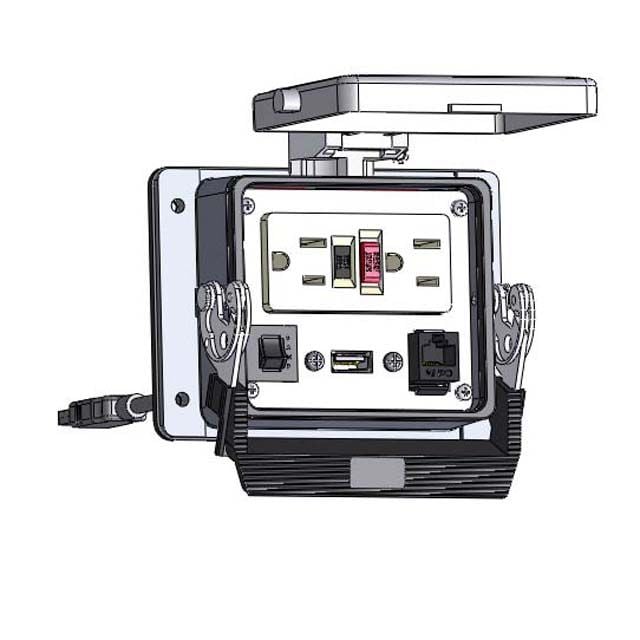

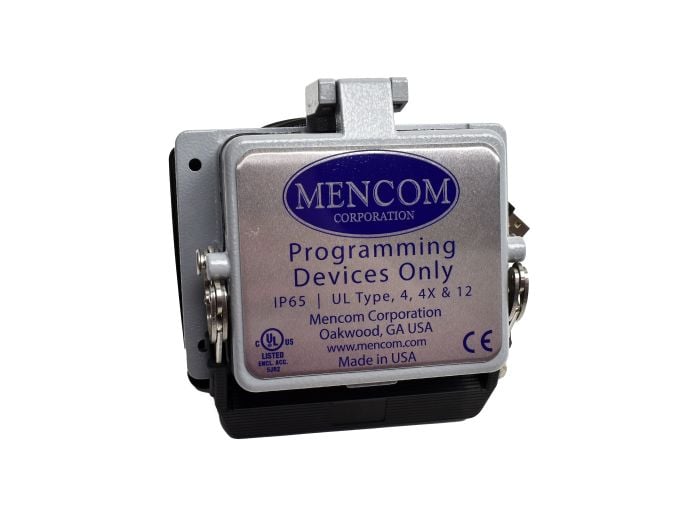

The Mencom GF-RJ45-USB-03-R-32 is a panel interface connector (PIC) that provides pass-through access to devices inside a control panel, featuring a 120 V GFCI duplex receptacle, RJ45 Ethernet port, and USB A-female to A-male pass-through. Housed in a Size 32 bulkhead enclosure, it includes a 3 A reset/circuit breaker, a 3 ft (1 m) cable, and IP65 environmental protection, enabling external interfacing without opening the panel door and helping comply with NFPA 70E.

• Built-in 120 V GFCI duplex outlet with 3 A reset/circuit breaker and two 120 V receptacles
• Pass-through RJ45 Ethernet and USB A (female) to USB A (male) connectivity with a 3 ft (1 m) cable
• Size 32 nickel plated zinc bulkhead housing for bulkhead/panel mounting with IP65 protection

Product Highlights

Pass-through GFCI outlet, RJ45, and USB in a Size 32 IP65 bulkhead housing for panel mounting

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: GF-RJ45-USB-03-R-32

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: GF-RJ45-USB-03-R-32
• Product Type: Panel Interface Connector (PIC)
• Product Series: PIC
• Outlet Voltage: 120 V
• Number of Outlets: 2
• GFCI: Yes
• Reset / Circuit Breaker: 3 A
• RJ45: Yes
• USB: USB A (female) to USB A (male) pass-through
• Housing Size: Size 32 bulkhead housing
• Mounting Type: Bulkhead mount
• IP Rating: IP65
• Cable Length: 3 ft (1 m)
• Material: Nickel plated zinc
• Weight: 1.72 lbs
• RoHS Compliant: Yes
