Mencom GF-RJ45-32 Panel Interface Connector 120V GFCI (Size 32)

Product Description

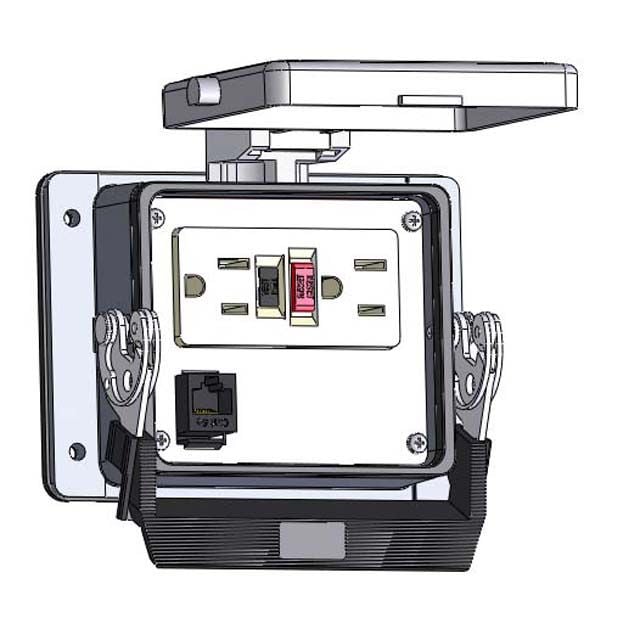

Mencom GF-RJ45-32 is a panel interface connector that provides a 120 V GFCI duplex receptacle and an RJ45 Ethernet port in a Size 32 bulkhead housing for bulkhead mounting on control panels. It enables pass-through connections to devices such as PLCs and computers without opening the panel door, offers IP65 protection against dust and water ingress, and weighs 1.65 lbs. It supports meeting NFPA 70E requirements and provides network access on the shop floor.

• Integrated 120 V GFCI duplex receptacle for protected AC power
• RJ45 Ethernet port for network connectivity to PLCs and computers
• Size 32 bulkhead housing, bulkhead mount, IP65 rated, weight 1.65 lbs

Product Highlights

Panel pass-through connector with 120 V GFCI and RJ45 in IP65 Size 32 bulkhead housing

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: GF-RJ45-32

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: GF-RJ45-32
• Product Type: Panel interface connector
• Power Ports: 120 V GFCI duplex receptacle
• Ethernet Port: RJ45
• Housing Size: Size 32 bulkhead housing
• Mounting Type: Bulkhead mount
• IP Rating: IP65
• Weight: 1.65 lbs
• Applications: Pass-through connections for PLCs, computers and control panel devices
• Safety Compliance: Helps meet NFPA 70E requirements
