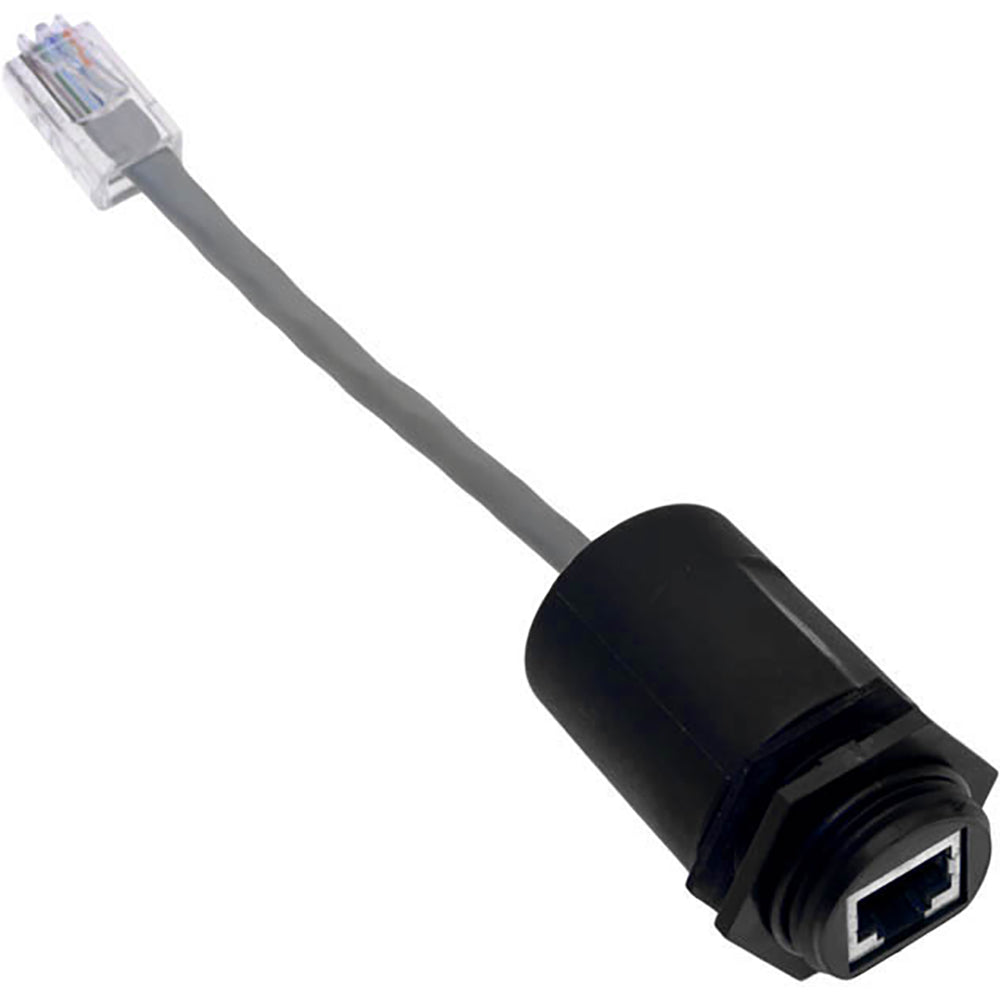

Mencom E45V3-8FMR-3-M25 Ethernet Receptacle 8 Pole Female To Male RJ45 Plug 3 Ft M25

Product Description

Mencom E45V3-8FMR-3-M25 is an Ethernet receptacle assembly that pairs a front-mount E45V3 M25-threaded female RJ45 receptacle with a 3 ft cable terminating in a male straight RJ45 plug. The Cat5e assembly provides eight conductors (24 AWG), a 60 V/2 A rating, and IP67 ingress protection when mated. The unit uses a plastic shell with M25 front-panel mounting and is listed to UL508A, UL50, and UL50E for industrial Ethernet connections.

• Front-mount E45V3 female RJ45 receptacle with M25 thread and plastic shell
• 3 ft (1 m) Cat5e cable, 8-pin (24 AWG), cable O.D. 0.22 in, PVC jacket
• Electrical rating 60 V / 2 A; IP67 ingress protection when mated; UL508A, UL50, UL50E, RoHS

Product Highlights

Industrial Cat5e front-mount RJ45 receptacle assembly with 3 ft cable, IP67 when mated, UL-listed

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: E45V3-8FMR-3-M25

Technical Specifications

• Brand: MENCOM
• Part Number: E45V3-8FMR-3-M25
• Product Type: Network Connectors
• Component Type: Receptacle Assembly
• Series: E45V3
• Connector 1 Type: Female straight RJ45 receptacle (E45V3)
• Connector 2 Type: Male straight RJ45 plug
• Pin Count: 8
• Cable Type: Cat5e
• Wire Gauge (AWG): 24
• Voltage Rating: 60 V
• Current Rating: 2 A
• Cable Length: 3 ft (1 m)
• Cable Outer Diameter: 0.22 in
• Cable Jacket Material: PVC
• Jacket Color: Gray
• Mounting Thread: M25
• Mounting Type: Front mount
• Shell Material: Plastic
• Shielding: No
• Ground Wire: No
• IP Rating: IP67 (when mated)
• Standards / Certifications: UL508A; UL50; UL50E; RoHS compliant
• Weight: 0.152 lb
• Orientation Connector 1: Female Straight
• Orientation Connector 2: Male Straight
• Category: Plug/Receptacle
