Mencom E45V3-8FMR-1-M25 Ethernet receptacle 60 V (1 ft) E45V38FMR1M25

Product Description

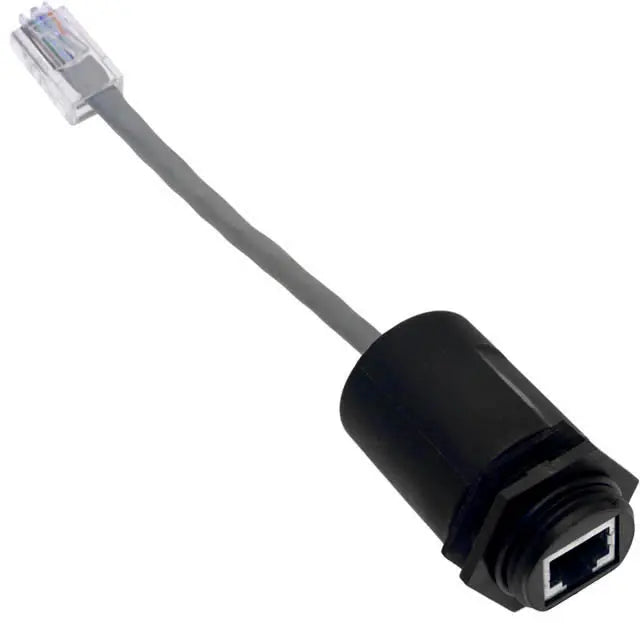

Mencom E45V3-8FMR-1-M25 is an industrial Ethernet receptacle assembly that pairs an E45V3 8-pole female straight receptacle with a male straight RJ45 plug and a 1 ft (0.3 m) Cat5e PVC-jacketed cable. The front-mount unit uses an M25 thread, provides IP67 ingress protection when mated, and carries electrical ratings of 60 V and 2 A. Construction includes a polyamide/plastic body and gold-plated copper alloy contacts.

• 8-pin E45V3 female straight to male straight RJ45 plug; M25 front-mount configuration
• 1 ft (0.3 m) Cat5e cable with PVC jacket, 24 AWG, 0.22 in O.D.; accepts standard RJ45 patch cords
• Electrical rating 60 V, 2 A; IP67 when mated; certified to UL508A, UL50 and UL50E; operating temperature -40 to 80 C

Product Highlights

Industrial Cat5e RJ45 receptacle assembly with M25 front mount, IP67 ingress protection when mated, and UL508A/UL50/UL50E certifications

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: E45V3-8FMR-1-M25
• Country of Origin: US

Technical Specifications

• Brand: MENCOM
• MPN: E45V3-8FMR-1-M25
• Product Type: Network Connector
• Component Type: Receptacle assembly
• Series: E45V3 Ethernet
• Pin Count: 8
• Gender: Female receptacle to male RJ45 plug
• Orientation Head 1: Female straight
• Orientation Head 2: Male straight
• Mating Type Head 1: E45V3
• Mating Type Head 2: RJ45 plug
• Wire Gauge: 24 AWG
• Voltage Rating: 60 V
• Current Rating: 2 A
• Cable Length: 1 ft (0.3 m)
• Cable Length (meters): 0.3
• Cable Length (feet): 1
• Cable O.D.: 0.22 in
• Cable Jacket Material: PVC
• Cable: Cat5e with PVC jacket
• Body Material: Polyamide (plastic)
• Backshell / Shell Material: Plastic
• Contacts: Gold plated copper alloy
• Shielding: No
• Ground Wire: No
• Mounting Thread: M25
• Mounting Style: Front mount
• Ingress Protection: IP67 (when mated)
• Certifications: UL508A, UL50, UL50E
• Operating Temperature: -40 to 80 C (-40 to 176 F)
• RoHS: Yes
• Country of Origin: US
• Weight: 0.078 lb
• Alternate MPN: E45V38FMR1M25
