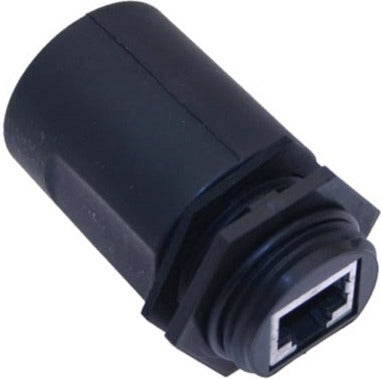

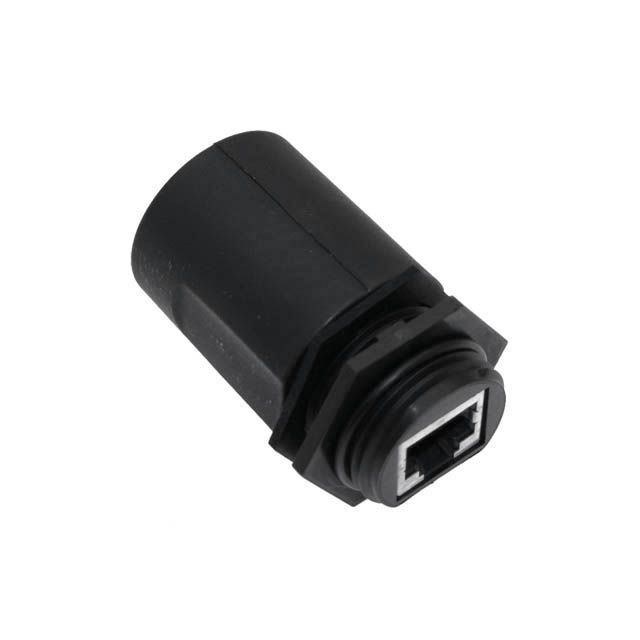

Mencom E45V3-8FFR-M25-CP E45V3 Receptacle With Cap 60V (8 Pole) 1834796

Product Description

Mencom E45V3-8FFR-M25-CP is an industrial Cat 5e RJ45 Ethernet receptacle that provides front-panel M25 mounting and field-wireable RJ45 connectivity for rugged environments. It is an 8-pole female straight-to-female straight connector rated 60 V and 2 A, with a polyamide insulator, gold-plated copper alloy contacts, and IP67 ingress protection when mated. The connector accepts standard RJ45 patch cords and is listed for UL508A, UL50, and UL50E applications.

• Industrial Cat 5e RJ45 receptacle, 8 poles, female straight to female straight
• Front-mount M25 thread, plastic shell with polyamide insulator and gold-plated contacts
• Rated 60 V, 2 A; IP67 ingress protection when mated; operating temperature -40 C to 80 C

Product Highlights

Industrial Cat5e RJ45 receptacle, IP67 when mated, front-mount M25, 8-pole female configuration

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: E45V3-8FFR-M25-CP

Technical Specifications

• Manufacturer Part Number: E45V3-8FFR-M25-CP
• Brand: Mencom
• Product Type: Ethernet receptacle
• Series: E45V3
• Pin Count: 8
• Gender: Female to Female
• Orientation: Female straight / Female straight
• Mating Thread Type: E45V3 (head 1), RJ45 jack (head 2)
• Mounting Thread: M25
• Mounting Style: Front mount
• Shell Material: Plastic
• Insulator Material: Polyamide
• Contacts: Gold plated copper alloy
• Voltage Rating: 60 V
• Current Rating: 2 A
• Ingress Protection: IP67
• Certifications: UL508A; UL50; UL50E
• Operating Temperature: -40 C to 80 C
• Dimensions: 1.29 in x 1.96 in
• Weight: 0.046 lb
• Shielding: No
• Ground Wire: No
• Accepts: Standard RJ45 patch cords
• Field-wireable: Yes
• Alternate Part Number: 1834796
