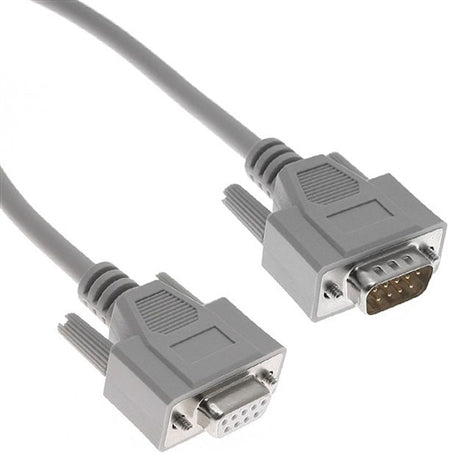

Mencom DB09-MF-06 Panel Interface Connector Cable 9 Pin D-Sub Male to Female (6 ft)

Product Description

Mencom DB09-MF-06 is a panel interface extension cable with male-to-female 9-pin D-Sub connectors designed for pass-through connections to PLCs, computers, and other programmable devices. The cable measures 6 ft (1.8 m), uses 26 AWG conductors, and has a PVC jacket with integrated strain relief. Contacts are gold plated copper alloy; the cable is unshielded, RoHS compliant, and part of Mencom's PIC Cables series.

• 9-pin D-Sub (DB9) male-to-female configuration for panel or computer interface
• 6 ft (1.8 m / 72 in) PVC-jacketed cable with 26 AWG conductors and integrated strain relief
• Gold-plated copper alloy contacts; unshielded; RoHS compliant

Product Highlights

Panel interface extension cable (DB9 M/F) for pass-through access to PLCs and computers.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: DB09-MF-06
• Country of Origin: United States

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: DB09-MF-06
• Product Series: PIC Cables
• Connection Type: 9-pin D-Sub (DB9)
• Connection Configuration: Male to Female
• Connector A (End 1): DB9 Male
• Connector B (End 2): DB9 Female
• Number of Pins: 9
• Length: 6 ft (72 in / 1.8 m)
• Wire Gauge: 26 AWG
• Cable Jacket Material: PVC
• Color: Gray
• Contact Material: Gold plated copper alloy
• Shielding: No
• Strain Relief: Yes
• RoHS Compliant: Yes
• Application: Panel interface / pass-through connections to PLCs and computers
