Mencom D-USB-AFAF-M25-PA Low profile USB A female to A female port adapter M25

Product Description

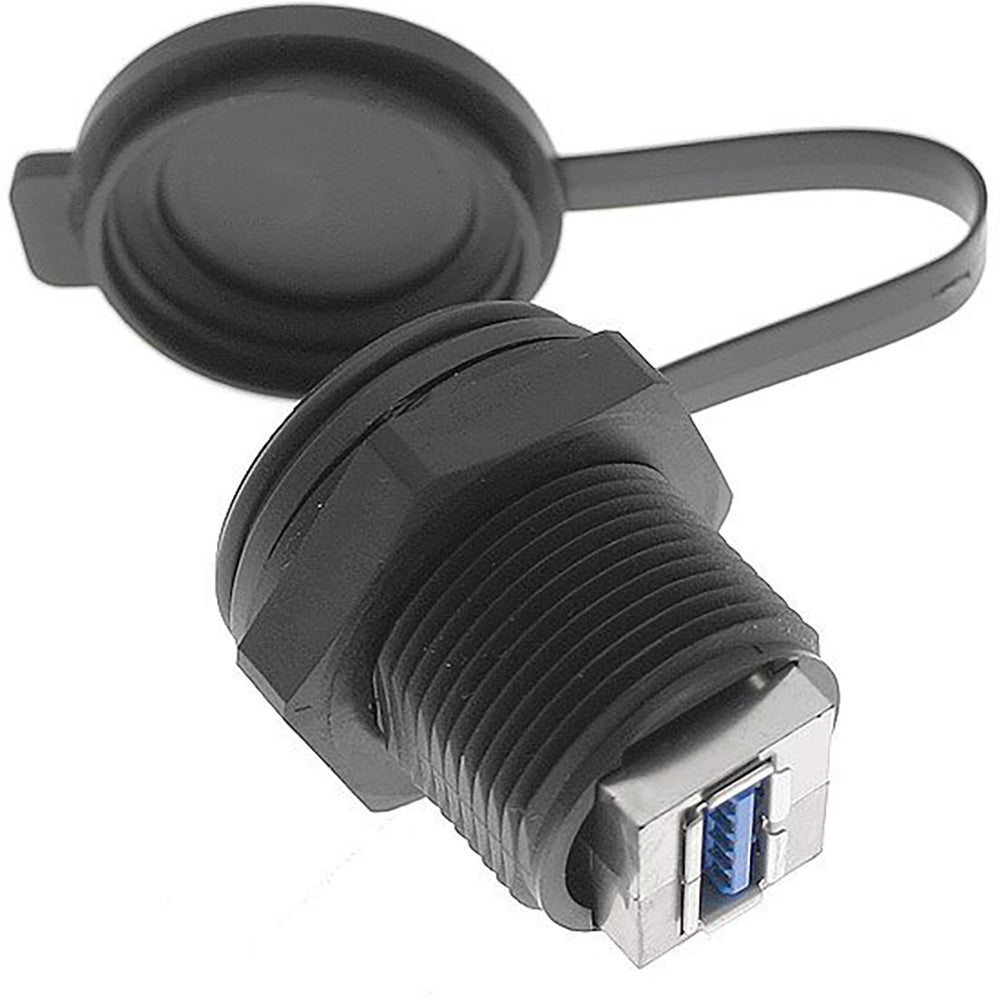

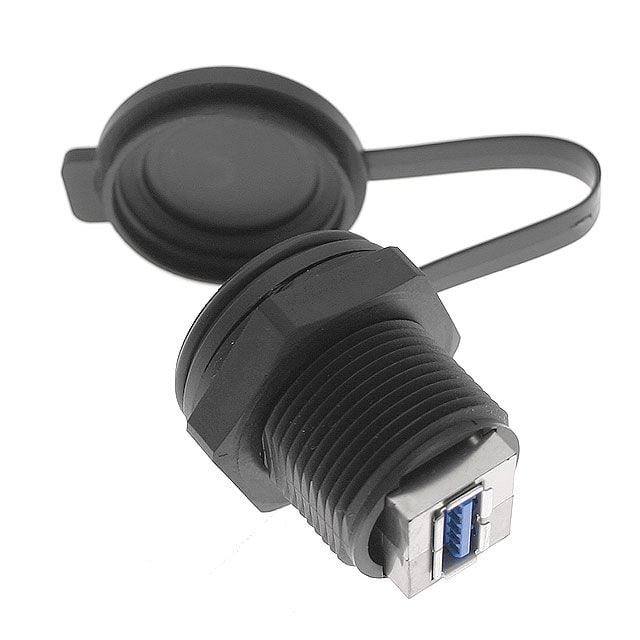

The Mencom D-USB-AFAF-M25-PA is a low-profile panel interface connector that provides a USB Type A female to Type A female pass-through connection in an M25 plastic receptacle shell. It mounts through the panel to allow external access to PLCs, computers, or programmable devices without opening the panel door, supporting NFPA 70E compliance. The unit is plastic-bodied, rated for IP65 and IP69 environmental protection, and listed to UL panel standards.

• USB Type A female to Type A female pass-through connector in an M25 low-profile receptacle
• Through-panel mount (M25 thread) with plastic/polyamide shell; compact 0.05 lb nominal weight
• Environmental protection rated IP65 and IP69; UL508A, UL50, UL50E listings indicated

Product Highlights

Low-profile M25 panel-mount USB A female-to-female adapter with IP65/IP69 protection for panel pass-through access

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: D-USB-AFAF-M25-PA
• Country of Origin: US

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: D-USB-AFAF-M25-PA
• Connector Type: USB A female to USB A female
• Mounting Thread: M25
• Mounting Style: Through-panel mount / Panel mount
• Housing: Low profile M25 receptacle shell
• Shell Material: Plastic (polyamide noted in some sources)
• IP Rating: IP65, IP69
• Weight: 0.05 lb
• Number of Ports: 2
• Product Series: PIC Plastic Port Adapters
• Certifications: UL508A, UL50, UL50E
• RoHS Compliant: Yes
• Country of Origin: US
• Type: Panel interface connector
