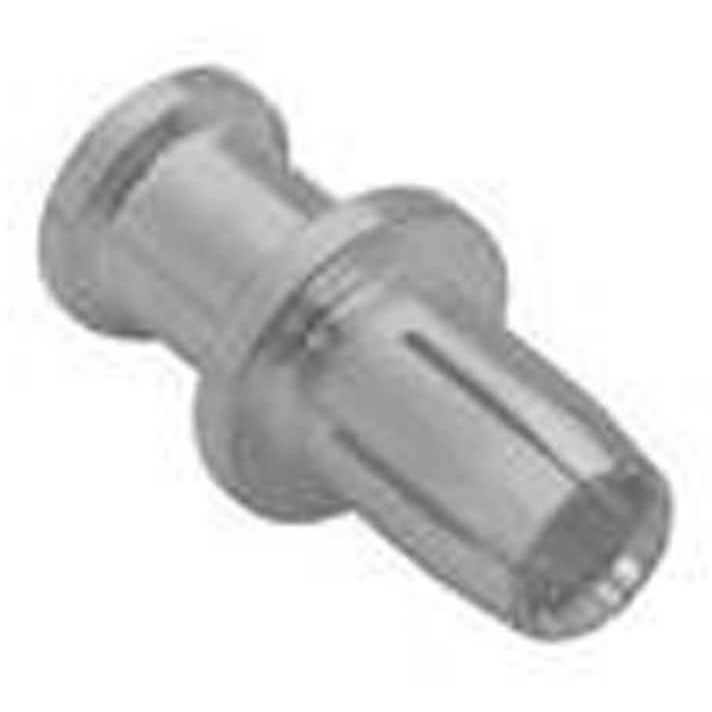

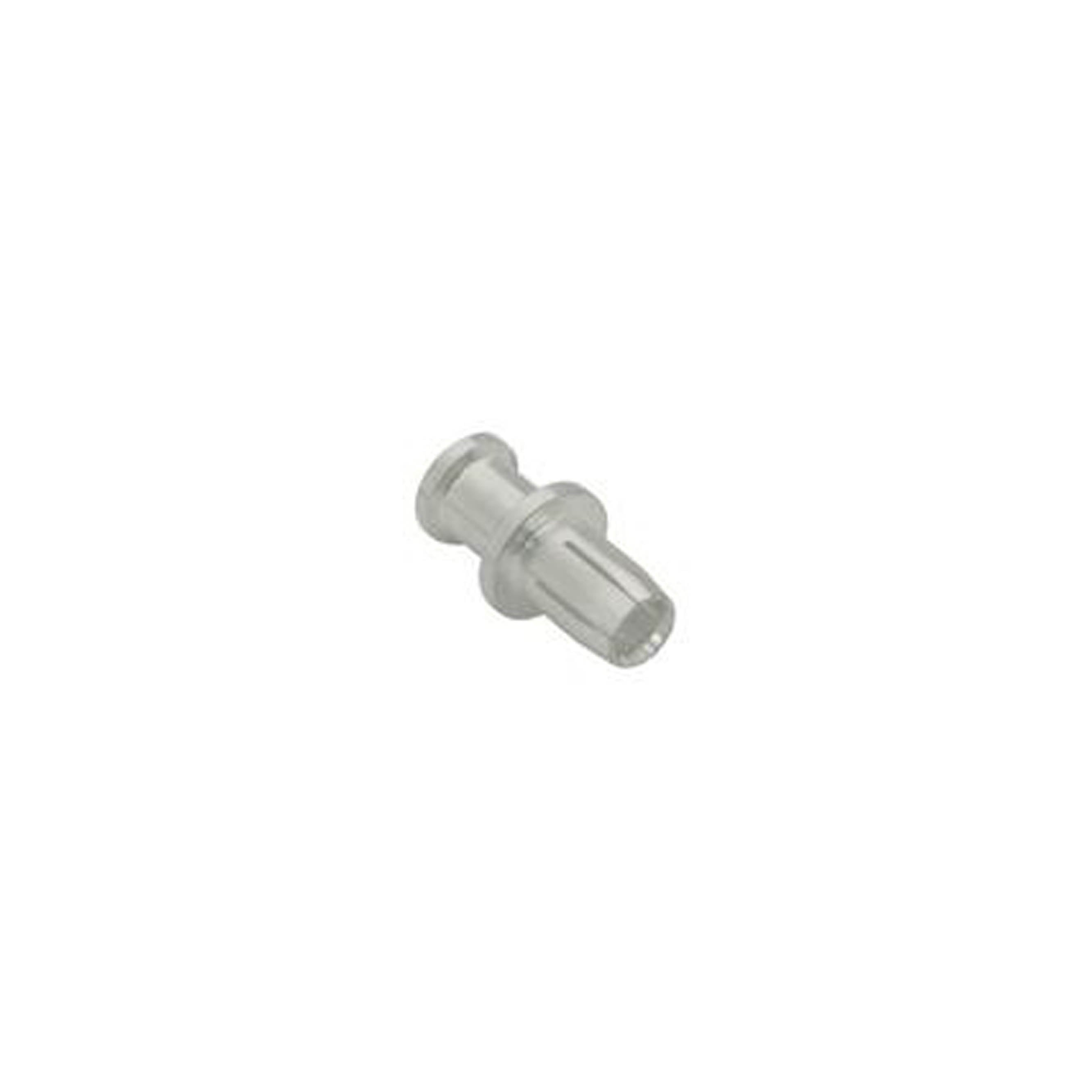

Mencom CYFA-50 Female Crimp Contact 200 A (1 AWG)

Product Description

Mencom CYFA-50 is a female crimp contact designed for power connections, rated 200 A for 1 AWG conductors. The contact features a silver contact finish, crimp termination, and is compatible with ILME MIXO series inserts and housings. It is specified for 600 V service and an operating temperature range of -40 C to +125 C, and is used in heavy-duty rectangular connector systems for industrial automation.

• 200 A current rating for 1 AWG conductors with crimp termination
• Silver contact finish; compatible with ILME MIXO series inserts
• Voltage rating 600 V and operating temperature -40 C to +125 C

Product Highlights

200 A female crimp contact for 1 AWG; silver finish; compatible with MIXO heavy-duty connector inserts

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CYFA-50

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: CYFA-50
• Type / Description: Female crimp contact
• Gender: Female
• Termination Method: Crimp
• Contact Finish: Silver
• Amperage Rating: 200 A
• Wire Size (AWG): 1 AWG
• Voltage Rating: 600 V
• Compatible Series: ILME MIXO
• Operating Temperature Range: -40 C to +125 C
• Housing Insert Type: Standard
