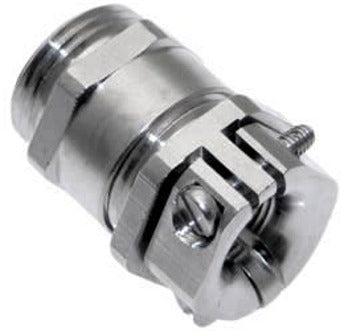

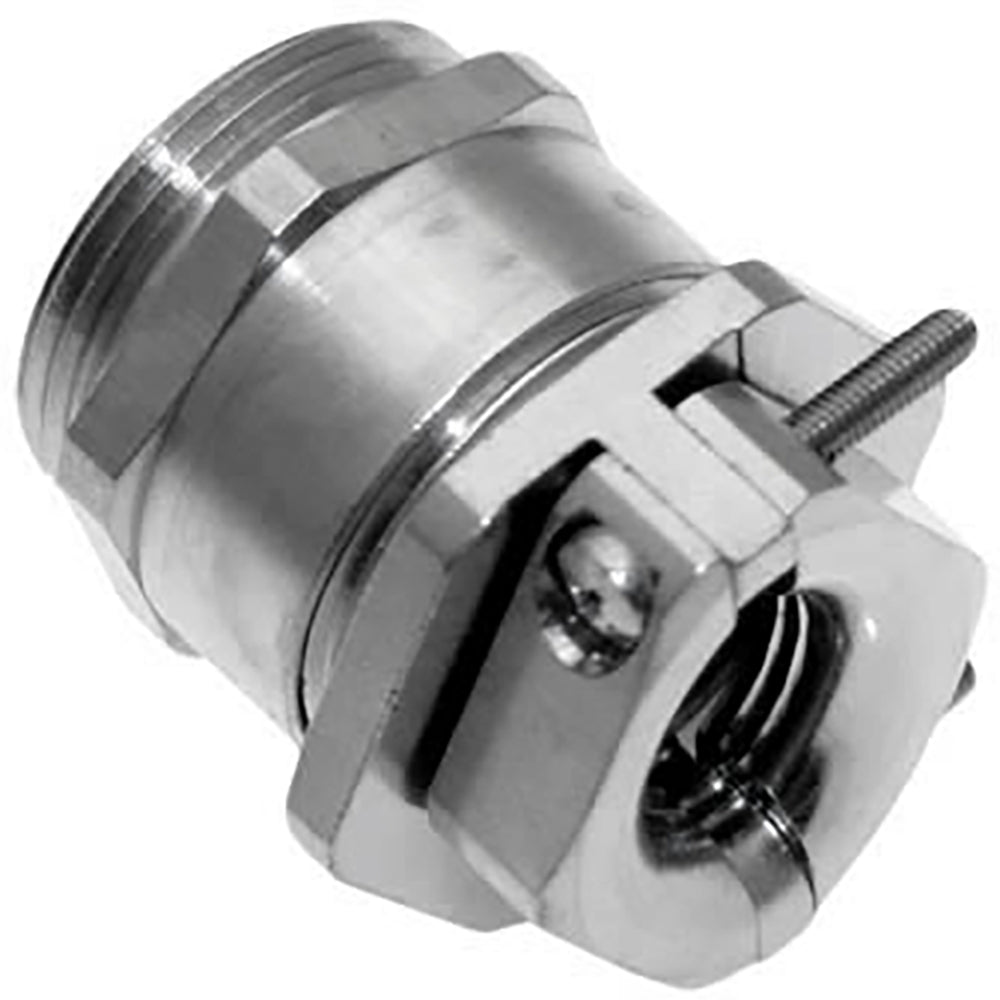

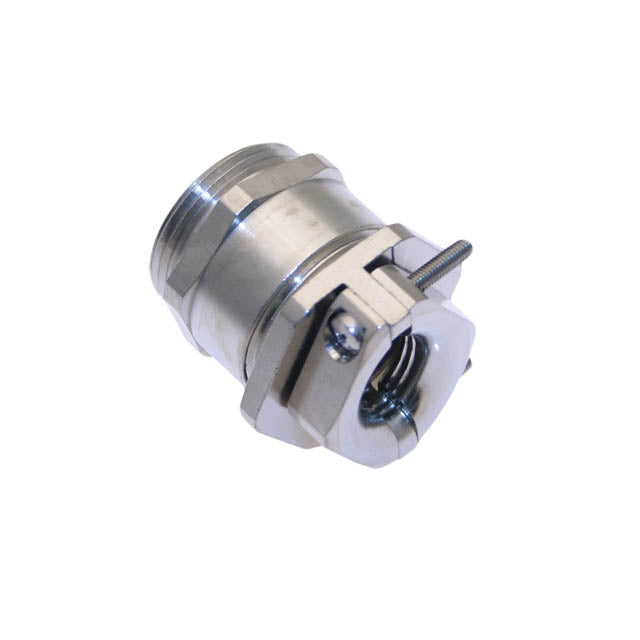

Mencom CRSS-21 Clamping Cable Gland (PG21, 12.5-19 mm, Straight)

Product Description

Mencom CRSS-21 is a PG21 clamping cable gland designed for cable sealing and strain relief. It is constructed of nickel plated brass and accommodates one round cable with a diameter range of 12.5 to 19 mm (0.551 to 0.827 in). The gland uses a neoprene sealing ring with perforations and self-centering double saddle clamps to secure cables while providing IP55 ingress protection for enclosure and panel applications.

• Nickel plated brass construction with PG21 thread; clamping range 12.5–19 mm (0.551–0.827 in)
• Neoprene sealing ring with multiple perforations plus self-centering double saddle clamps for cable retention
• Provides IP55 protection; accepts one round cable; straight mounting angle

Product Highlights

PG21 metal clamping gland with neoprene seal and double saddle clamps for strain relief and IP55 protection

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CRSS-21

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CRSS-21
• Series: CRSS
• Type: Clamping cable gland
• Thread Size: PG21
• Cable Diameter Range: 12.5-19 mm (0.551-0.827 in)
• Material: Nickel plated brass
• Sealing Material: Neoprene sealing ring with perforations
• Clamping Mechanism: Self-centering double saddle clamps
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• Ingress Protection: IP55
• Weight: 0.205 lbs
• Manufacturer Numeric ID: 2510412
• Composition: Metallic
• Compatibility: Compatible with ILME enclosures and hoods
• Split Frame: No
• Hazardous Location: No
