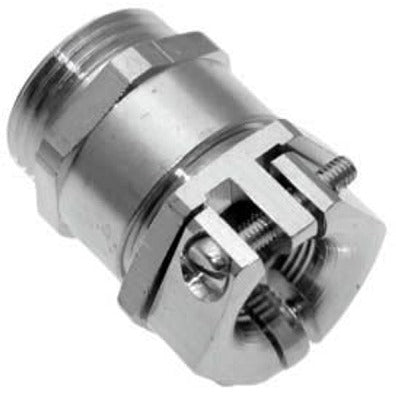

Mencom CRSS-13.5 Metal Clamping Cable Gland PG13.5 (0.334-0.531 in)

Product Description

Mencom CRSS-13.5 is a nickel plated brass PG13.5 clamping cable gland designed for a single round cable with a diameter range of 0.334–0.531 in (9–13 mm). It uses a neoprene sealing grommet with multiple perforations and self-centering double saddle clamps to provide strain relief and environmental sealing to IP55. Rings are zinc plated steel; brass nuts and O-rings are supplied separately.

• Nickel plated brass clamping gland with PG13.5 mounting thread and self-centering double saddle clamps
• Neoprene sealing grommet with multiple perforations accommodates 0.334–0.531 in (9–13 mm) round cables; rings zinc plated steel
• Provides ingress protection rated to IP55; designed for straight entry and compatibility with ILME enclosures and hoods

Product Highlights

PG13.5 nickel plated brass clamping gland for one round cable (0.334–0.531 in), neoprene perforated grommet, IP55 protection

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CRSS-13.5

Technical Specifications

• Brand: MENCOM
• Manufacturer: Mencom
• Manufacturer Part Number: CRSS-13.5
• Product Series: CRSS
• Product Type: Clamping cable gland
• Material: Nickel plated brass
• Rings Material: Zinc plated steel
• Grommet: Neoprene sealing grommet with multiple perforations
• Mounting Thread: PG13.5
• Cable Diameter Range (inches): 0.334-0.531
• Cable Diameter Range (mm): 9-13
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• Ingress Protection: IP55
• Nut Included: No
• Compatible With: ILME enclosures and hoods
