Mencom CHO-48L42 Standard Rectangular Hood 48 Position Size 104.62 2 Pegs Side PG42

Product Description

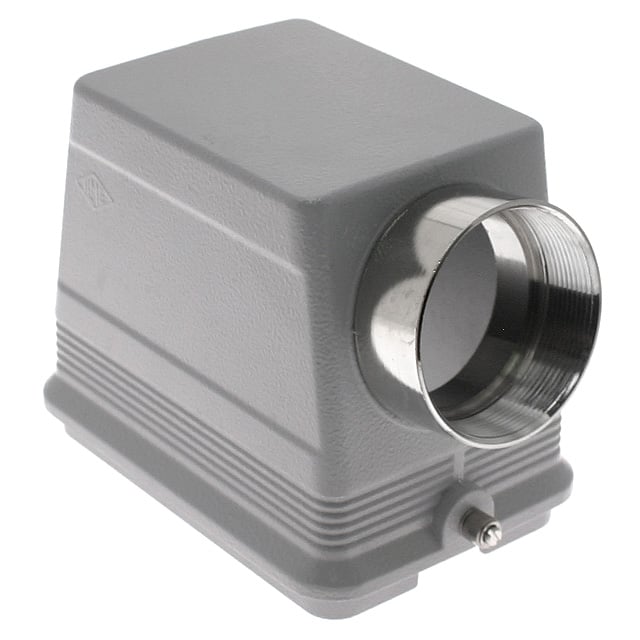

Mencom CHO-48L42 is a standard rectangular hood for heavy-duty industrial connectors designed for cable mounting with a side PG42 cable entry. It is a die-cast aluminum, male hood sized 104.62 for 48-position rectangular inserts and includes two pegs for secure mounting. The hood uses a patented stainless steel locking system and provides IP66 ingress protection across a wide operating temperature range.

• Die-cast aluminum housing with patented stainless steel locking system rated for 500 mating cycles
• Side PG42 cable entry, 2 pegs, single entry, male hood, insert/enclosure dimension 104.62 (fits 48-position inserts)
• IP66 ingress protection; operating temperature -40 C to +125 C; no cover and no gasket/O-ring; cable mounting style

Product Highlights

48-position die-cast rectangular hood with PG42 side entry and IP66 protection

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CHO-48L42

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CHO-48L42
• Product Type: Rectangular Connectors (hood)
• Component Type: Hood
• Model/Name: Standard rectangular hood
• Positions: 48
• Housing/Insert Type: Standard
• Size (Insert/Enclosure Dimension): 104.62 (metric mm, see dimensions)
• Pegs: 2
• Hood Entry: Side
• Hood Thread: PG42
• Number of Entries: 1
• Gender: Male
• Mounting Style: Cable
• Cover: No
• Gasket/O-Ring: No
• Enclosure Material: Aluminum die-cast (metal)
• Locking System: Patented stainless steel locking system (consistent clamping force, protection after 500 mating cycles)
• IP Rating: IP66
• Temperature Range: -40 C to +125 C
• Weight (lbs.): 1.32
• Product Condition: New
