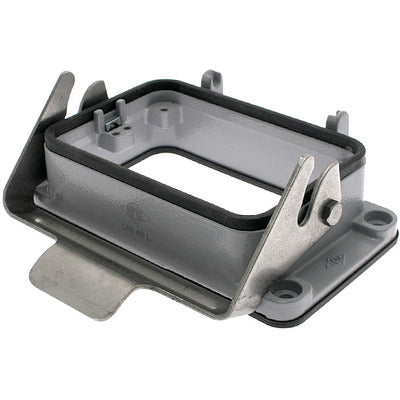

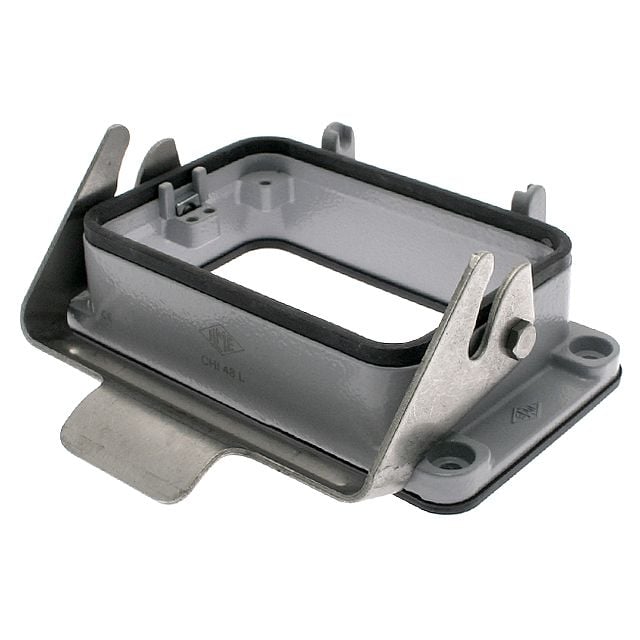

Mencom CHI-48L Standard rectangular base bulkhead mount size 104.62 48 pole single latch

Product Description

The Mencom CHI-48L is a bulkhead-mount rectangular connector base designed for industrial connector panels. The CHI-48L features an aluminum die-cast metal housing with gasket, a patented stainless steel single-latch locking system, and is rated for wide temperature operation from -40 C to +125 C. The base supports 48 poles and provides IP66 ingress protection for heavy-duty applications.

• Bulkhead-mount rectangular base, 48 pole configuration with single lever latch
• Aluminum die-cast housing with gasket and patented stainless steel locking system; epoxy coating noted
• Rated for -40 C to +125 C operation and IP66 ingress protection; electrical rating 600 V AC, 16 A

Product Highlights

Bulkhead-mount rectangular base, 48 poles, single latch, aluminum housing, IP66, -40 C to +125 C

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CHI-48L

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CHI-48L
• Series: CN
• Product Type: Rectangular Connectors
• Component Type: Base
• Mounting Type: Bulkhead mount
• Lever Type: Single latch
• Poles: 48
• Voltage Rating: 600 V AC
• Current Rating: 16 A
• Material: Aluminum (die-cast)
• Coating: Epoxy coated
• Insert Dimension: 104.27 (units not specified — likely mm)
• Dimensions: 6.5748 in W x 3.6614 in D
• IP Rating: IP66
• Temperature Range: -40 C to +125 C
• Weight: 1.037 lb
• Gasket: Yes
• Cover: No
• Number of Entries: 0
• Gender: Male
• Locking System: Patented stainless steel locking system
• NEMA Rating: NEMA 4/4x/12
• Certifications: CE marked; RU/UL listed
• Supported Entry Types: PG, Metric, NPT
