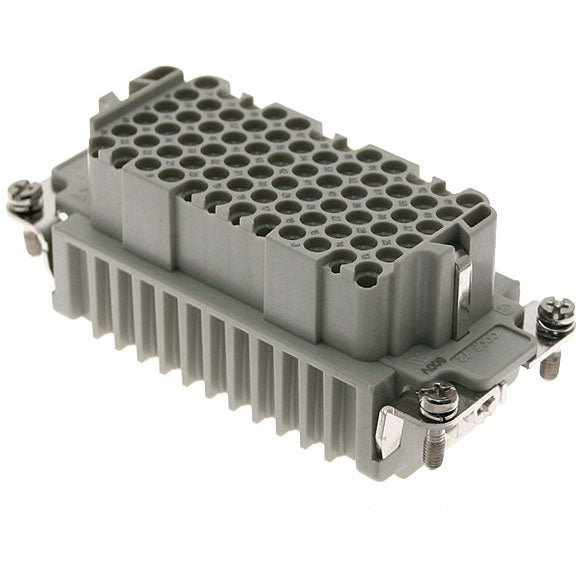

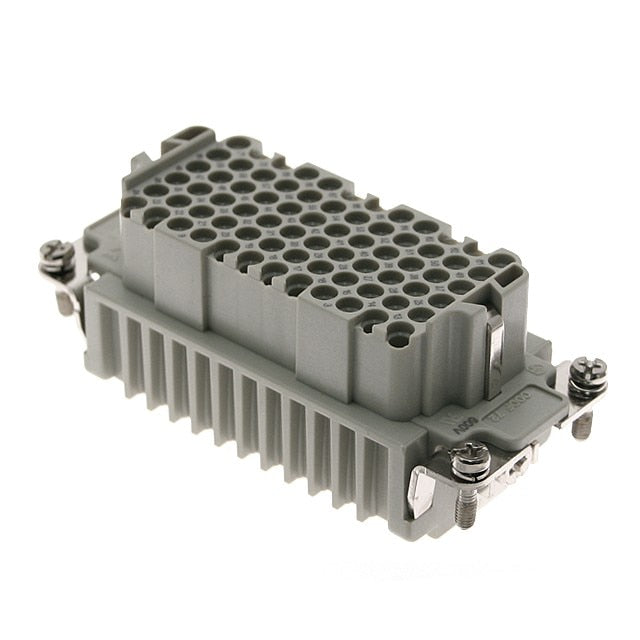

Mencom CDDF-72 Hi-density CDD Series Female Rectangular Insert 10 A (Size 77.27 / 72 Pin)

Product Description

The Mencom CDDF-72 is a hi-density CDD series 72-pin female rectangular insert rated 10 A and 600 V, designed for crimp termination in multi-pin connector assemblies. Constructed of self-extinguishing thermoplastic, it accepts conductor sizes from AWG 14 (upper) to AWG 26 (lower) and operates from -40 C to +125 C. The insert mates with matching hoods and bases to form quick-disconnect solutions for industrial automation applications.

• 72-pin hi-density female insert rated 10 A and 600 V.
• Crimp termination; accepts AWG 14 (upper) to AWG 26 (lower).
• Self-extinguishing thermoplastic; operating temperature -40 to +125 C; size 77.27.

Product Highlights

Hi-density 72-pin crimp insert for rectangular connector assemblies; size 77.27; rated 10 A / 600 V.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CDDF-72

Technical Specifications

• Brand: MENCOM
• MPN: CDDF-72
• Series: CDD
• Product Type: Rectangular Connector Insert
• Component Type: Female Insert
• Housing/Insert Type: Hi-Density
• Size: 77.27 (manufacturer size/code - not a physical dimension)
• Pin Count: 72
• Gender: Female
• Termination: Crimp
• Current Rating: 10 A
• Voltage Rating: 600 V
• Upper AWG: 14
• Lower AWG: 26
• Material: Self-extinguishing thermoplastic
• Operating Temperature: -40 to +125 C
• Applications: Industrial automation; quick-disconnect connector assemblies
