Mencom CDDF-24 24 Position Female Crimp Insert 10 A (44.27 mm)

Product Description

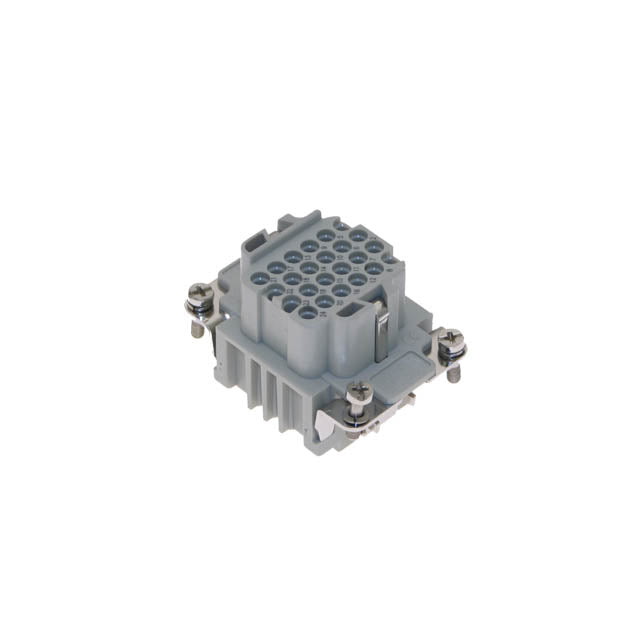

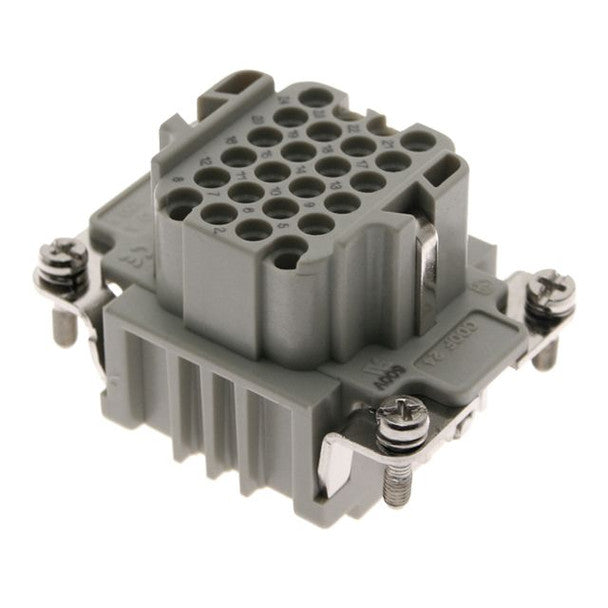

The Mencom CDDF-24 is a 24-position female rectangular crimp insert rated 10 A and 600 V. It features a high-density 24-pin layout in a 44.27 mm insert dimension, self-extinguishing thermoplastic construction, and an operating range from -40 C to +125 C. The insert accepts crimp terminations for wire sizes from AWG 14 to AWG 26 and is intended for use with mating hoods and bases in industrial automation and quick-disconnect applications.

• 24-pin high-density female crimp insert, rated 10 A and 600 V
• Self-extinguishing thermoplastic material with temperature range -40 C to +125 C
• Crimp termination compatible with AWG 14 (upper) to AWG 26 (lower); insert dimension 44.27 mm

Product Highlights

High-density 24-position crimp insert for CDD series rectangular connectors, compatible with mating hoods and bases.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CDDF-24

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CDDF-24
• Series: CDD
• Product Type: Rectangular connector insert
• Component Type: Insert
• Gender: Female
• Pin Count: 24
• Termination: Crimp
• Rated Current (A): 10
• Rated Voltage (V): 600
• Wire Size (AWG): 14 (upper) to 26 (lower)
• Insert Dimension (mm): 44.27
• Double Insert Dimension (mm): 104.62
• Material: Self-extinguishing thermoplastic
• Operating Temperature: -40 C to +125 C
• Cover: No
• Weight (lbs): 0.09
• Compatibility: Mating hoods and bases for quick-disconnect solutions
