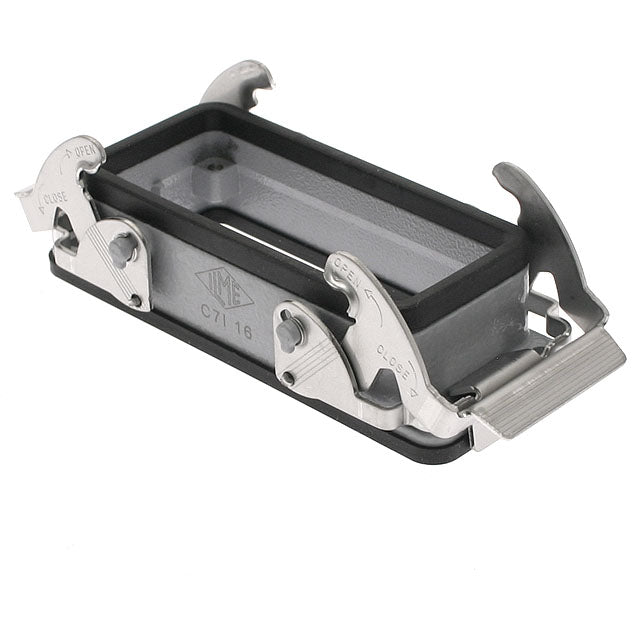

Mencom C7I-16 Rectangular Base Bulkhead Mount V-Type (Size 77.27)

Product Description

Mencom C7I-16 is a rectangular bulkhead-mount base connector that provides a V-type stainless steel double-latch locking system. The C7I-16 uses a CVI aluminum die-cast housing with a 77.27 insert/enclosure dimension, 16 positions, and an operating temperature range of -40°C to +125°C. Its patented V-type locking system maintains consistent clamping force and IP65 protection after 500 mating cycles and mates with hoods of the corresponding size for panel and bulkhead installations.

• Bulkhead-mount rectangular base, insert/enclosure size 77.27 for panel and bulkhead installations
• Patented V-type stainless steel double-latch locking system providing consistent clamping force and IP65 protection after 500 mating cycles
• CVI aluminum die-cast housing, 16 positions, standard housing insert type, operating range -40°C to +125°C

Product Highlights

Bulkhead-mounted V-type rectangular base (77.27) with stainless steel double latch, IP65 after 500 mating cycles, 16 positions, -40°C to +125°C

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: C7I-16

Technical Specifications

• Brand: MENCOM
• MPN: C7I-16
• Model: Mencom C7I-16
• Mounting Type: Bulkhead mount
• Base Style: Rectangular base
• Size / Insert Dimension: 77.27 mm (3.041 in) - insert/enclosure dimension
• Type: V-Type
• Number of Positions: 16
• Latch Type: Stainless steel double latch
• Locking System: Patented V-type stainless steel locking system
• Material: CVI aluminum die-cast
• Protection Rating: IP65
• Mating Cycles: 500 mating cycles
• Operating Temperature: -40 C to +125 C
• Housing Insert Type: Standard
• RoHS Compliance: Compliant
• Cover: No
• UPC: 8015747093637
• Datasheet: https://media.eccoconnectors.com/productfiles/mf-men/men-c7i16.pdf
