Product Description

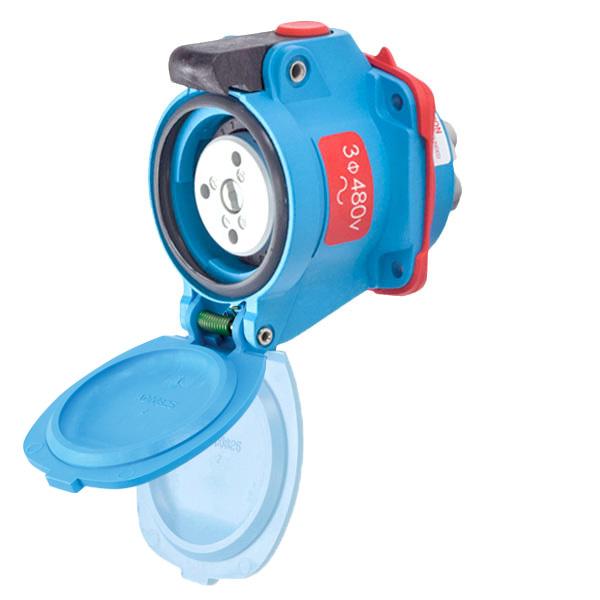

Meltric Corporation 63-34043 DSN30 Receptacle is a reliable solution for industrial electrical connections and is designed for switch rated applications. It features a 30 amp capacity and operates at 480 volts, making it suitable for high-demand environments. The product is made with durable polyester and is ideal for wet or washdown conditions, providing enhanced protection against moisture and dust.
- 30 Amp capacity at 480 VAC
- Compatible with wire sizes from 14 AWG to 8 AWG
- IP66/IP67/IP69K rated for harsh environments
Product Highlights
This receptacle ensures safety and efficiency in electrical systems, particularly in outdoor or wet locations, while allowing for quick and secure connections.
Product Information
Standard Information
-
Brand: Meltric
-
Model: 63-34043
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 480 VAC
-
Number of Poles: 3
-
Number of Wires: 4
-
Material: Polyester
-
Temperature Rating: -40 to 140 F
-
Dimensions: 2.8 in Dia x 3.42 in L
-
NEMA Rating: 4X
-
IP Rating: IP66/IP67/IP69K
-
Frequency Rating: 60 Hz
