Meltric 63-34043-972 MEL DSN3 Receptacle

Brand: MELTRIC
SKU: 63-34043-972
Availability: In Stock

Ships same day if ordered by 12 pm
$481.66
$481.66
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

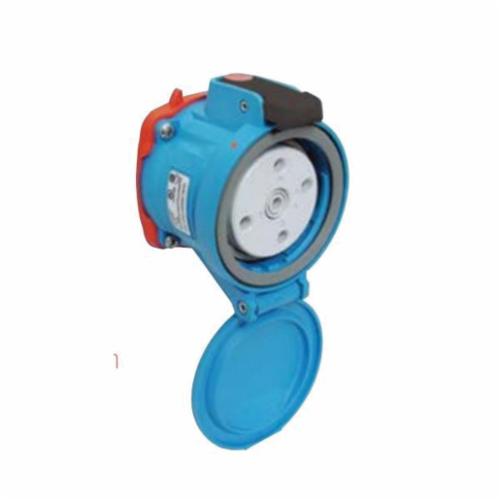

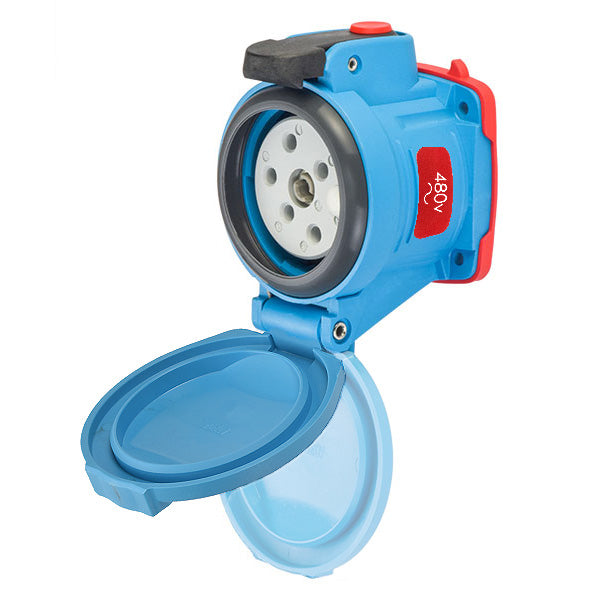

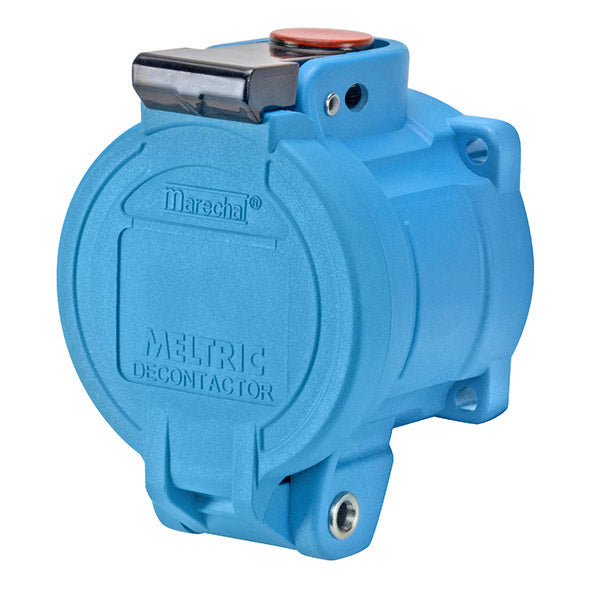

The MELTRIC 63-34043-972 is a DSN3 receptacle. This receptacle is rated for 30A and 480 VAC and features a 3P+G contact configuration with +2 AUX auxiliary contacts. It is suitable for use as a branch circuit disconnect switch and a motor circuit disconnect switch.

  • Rated for 30A and 480 VAC
  • Features a 3P+G contact configuration with +2 AUX auxiliary contacts
  • Suitable for use as a branch circuit disconnect switch and a motor circuit disconnect switch

Product Highlights

The MELTRIC DSN3 receptacle is ideal for industrial applications requiring a disconnect switch.

Product Information

Standard Information

  • Brand: MELTRIC
  • Manufacturer Part Number: 63-34043-972
Technical Specifications
Rated Current (A)
30 A
Rated Voltage (V)
480 VAC
Horsepower Rating
15 hp
Contact Configuration
3P+G
Auxiliary Contacts
+2 AUX
Ratings Information
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH MOTOR CIRCUIT DISCONNECT SWITCH
Environmental Rating
Type 4X IP 66/67 IP 69
Short Circuit Rating
100 kA - CLOSE & WITHSTAND
Impact Rating
IK09
Material
POLY
Minimum Operating Temperature
-40F -40C
Maximum Operating Temperature
140F 60C
Wiring Capacity - Phase Contacts
14 AWG – 8 AWG SCREW TERMINAL
Applicable Standards
UL 1682 UL 2682 cCSAus C22.2 No. 182.1-13
Option(1)
PADLOCK PAWL
Accessory Size
2
Frequency
60 Hz
IP Rating
66,67,69
Size
2
Strip Length
1/2 in
Voltage
480 Volt
Brand
MELTRIC
Product Series
11
Certifications and Compliance
CSA 155873,C22.2 No. 182.1-13,CCSAus
Current Rating
30 A
Manufacturer Part Number
63-34043-972-843
Termination
Screw terminal
