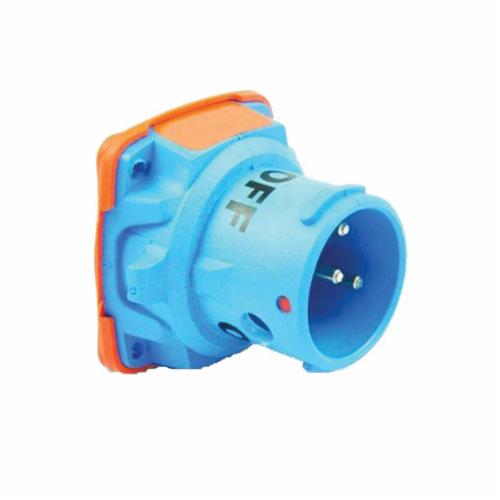

Meltric 63-18047 DSN20 Inlet 20A 277/480VAC 3P+N+G

Product Description

The Meltric 63-18047 DSN20 Inlet is designed for reliable electrical connections in demanding environments. This inlet is NEMA rated 4X and has an IP66/IP67/IP69K enclosure. The wiring capacity accommodates fourteen to twelve AWG cables and is rated for five horsepower at four hundred eighty volts in a three-phase system. It features three poles, neutral, and ground connections.

• Power Rating: Five horsepower at four hundred eighty volts
• IP66/IP67/IP69K rated enclosure for moisture protection
• Compatible with wire gauges between fourteen and twelve AWG

Product Highlights

Ideal for use in wet and washdown environments, the Meltric DSN20 series is compact and easy to connect. This inlet features a screw terminal design for secure wire connections.

Product Information

Standard Information

• Brand: Meltric
• MPN: 63-18047

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 255/277/440/480 VAC
• Frequency Rating: 60 Hz
• Material: Polyester
• Horsepower: 5 hp
• Size: 2.24 in diameter x 1.97 in length
• Temperature Rating: -40 to 140 degrees F
• Number of Wires: 5
• Number of Poles: 3
• NEMA Rating: 4X
• Standards/Approvals: UL, CSA, NOM, IEC, CE
