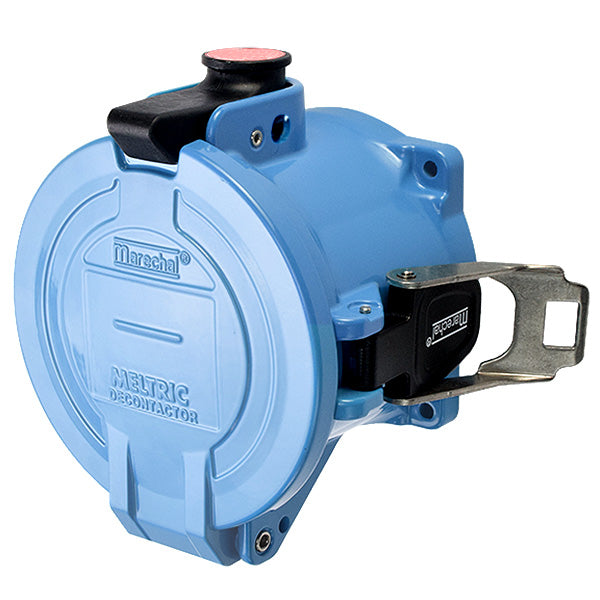

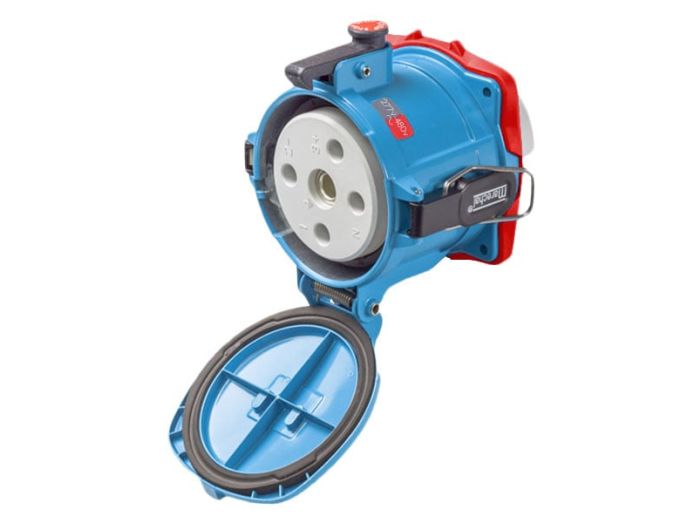

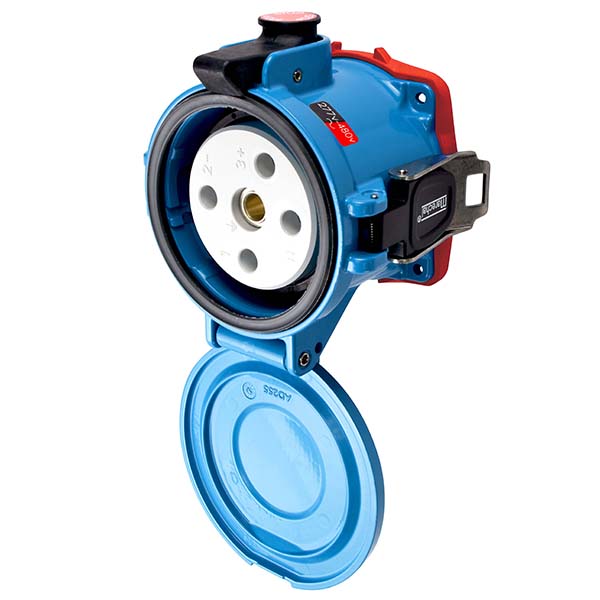

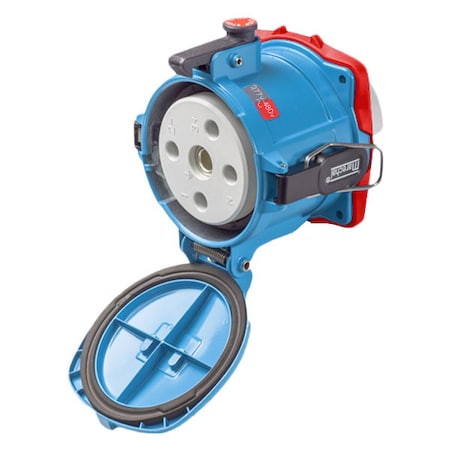

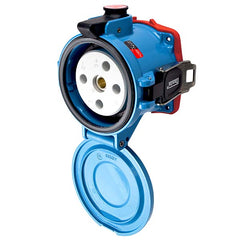

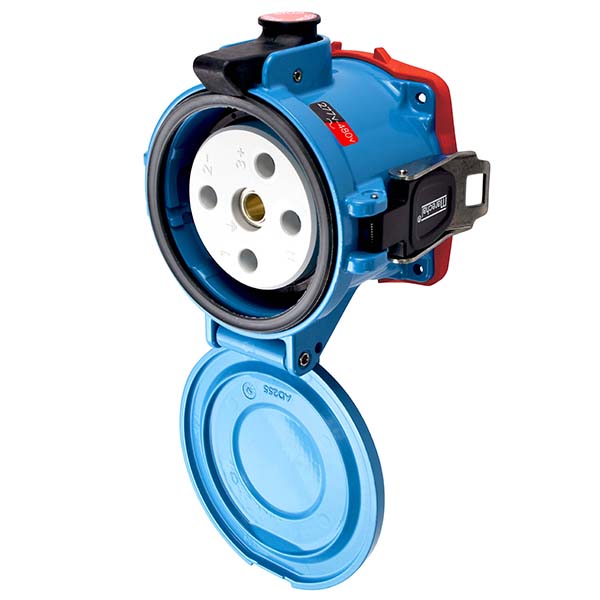

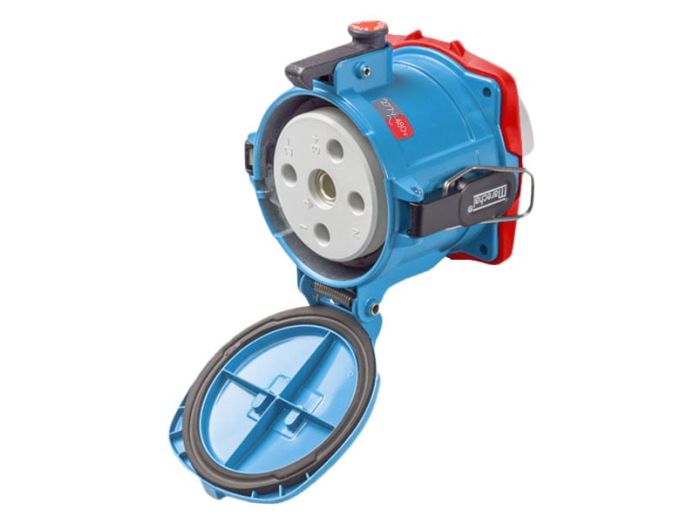

Meltric 37-24047 DS200 Receptacle 200A Size 6

Product Description

The MELTRIC 37-24047 is a DS200 Receptacle designed for demanding industrial applications in metals, quarry, automotive, and mining industries. This 200A, 277/480 VAC receptacle features 3 poles and 5 wires, accommodating wire sizes from 4 to 4/0 AWG. It includes neutral and ground connections and has a short circuit rating of 65 kA. The unit is rated IP66/67 and operates within a temperature range of -40 to 140 degrees F. It complies with UL, CSA, NOM, IEC, CE, and NFPA 70E standards.

• Equipped with neutral and ground connections for enhanced safety.
• Features a 65 kA short circuit rating for robust electrical protection.
• IP66/67 rated for environmental protection and operates from -40 to 140 degrees F.

Product Highlights

The MELTRIC 37-24047 DS200 Receptacle is a switch-rated device suitable for motors and welders in demanding industrial environments, offering robust protection and environmental durability.

Product Information

Standard Information

• Brand: MELTRIC
• Manufacturer Part Number: 37-24047
• Country of Origin: United States

Technical Specifications

• Type: Receptacle
• Size: 6
• Current Rating: 200 A
• Voltage Rating: 277/480 VAC
• Frequency: 60 Hz
• Horsepower Rating: 100 hp
• Number of Poles: 3
• Number of Wires: 5
• Contact Configuration: 3P+N+G
• Wire Size: 4-4/0 AWG
• Terminal Type: Screw
• Material: Aluminum
• Operating Temperature: -40 to 140 F
• IP Rating: IP66, IP67
• NEMA Rating: 4X
• Short Circuit Rating: 65 kA
• Impact Rating: IK10
• Certifications: UL, CSA, NOM, IEC, CE, NFPA 70E, 155873, C22.2 No. 182.1-13, cCSAus, E79796, UL 2682, UL 1682
• Auxiliary Contacts: None
• Ratings: Switch Rated, Branch Circuit Disconnect Switch, Motor Circuit Disconnect Switch
• Mating Box: MB20
• Strip Length: 1.5 in
• Series: DS200 Series 6
• Lockout-Tagout: No
• Built-In Strain Relief: No
• Option: Padlock Pawl
