Product Description

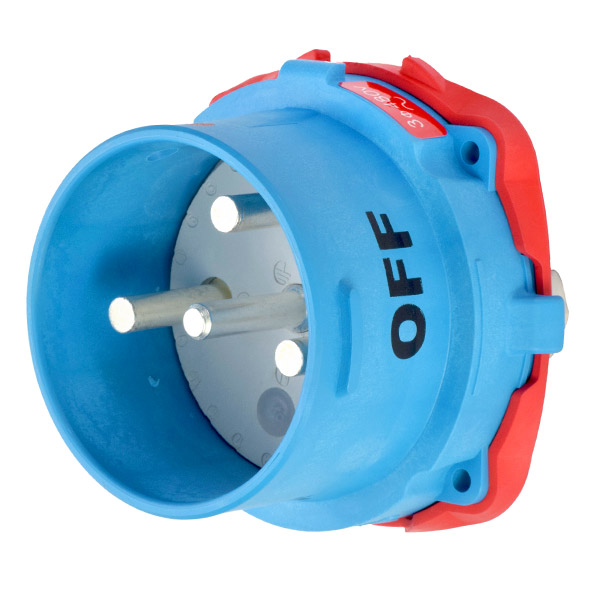

The Meltric Corporation 33-98043 DS100 Inlet is designed for high-demand applications in the metals, quarry, automotive, and mining industries. This inlet features a NEMA 3R enclosure, rated at IP54/IP55 for dust and water resistance. It supports wire sizes ranging from four to two-aught AWG and is built to handle a short circuit rating of sixty-five kiloamperes. The design incorporates a three-pole, ground setup to ensure operational safety.
- Rated for 100 Amps and 480 Volts
- Temperature range from -40 to 140 degrees Fahrenheit
- Standard compliant with UL, CSA, NOM, IEC, CE, and NFPA 70E
Product Highlights
This inlet is suitable for outdoor applications, providing reliable connectivity in challenging environments.
Product Information
Standard Information
-
Brand: Meltric
-
Manufacturer Part Number: 33-98043
Technical Specifications
-
Amperage Rating: 100 A
-
Voltage Rating: 255/277/440/480 VAC
-
Frequency Rating: 60 Hz
-
Horsepower: 30 hp
-
Color: Blue
-
Material: Polyester
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 140 degrees Fahrenheit
