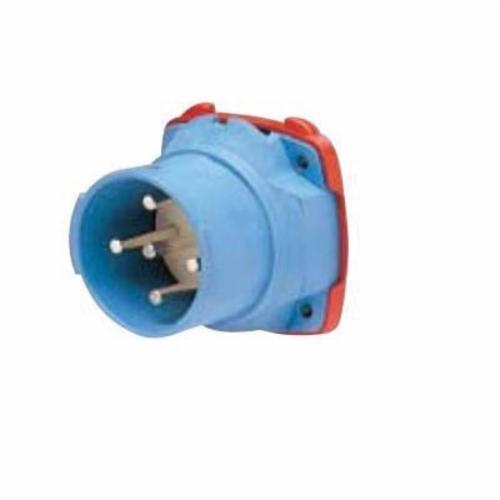

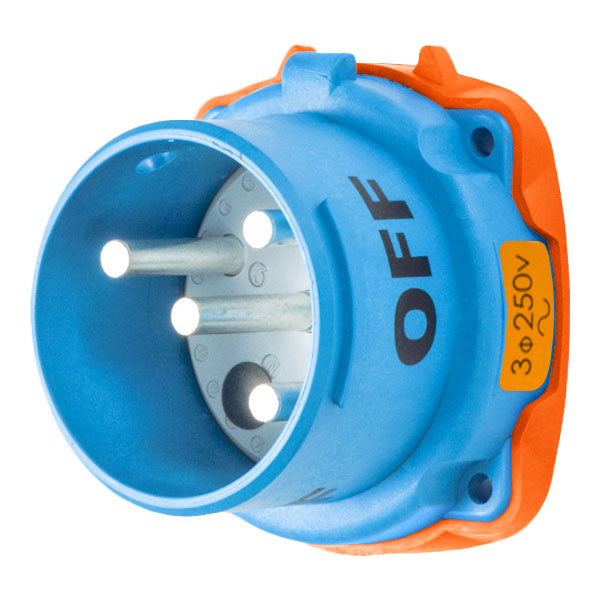

Meltric 33-68073 DS60 Inlet 60 Amp 110/125/220/250 VAC

Product Description

The Meltric Corporation 33-68073 DS60 Inlet is designed for heavy-duty applications. This inlet operates at 60 Amps and is rated for voltages of 110, 125, 220, and 250 VAC. It features a robust NEMA 3R enclosure and complies with IP54/IP55 ratings, making it suitable for outdoor use. This inlet is commonly used in the metals, quarry, automotive, and mining industries.

• Designed for large wiring capacities
• Features solid silver nickel contact surfaces
• Meets multiple safety standards including UL and CSA

Product Highlights

The DS60 series is often employed to connect motors and welders. It is ideal for applications that demand durability and a high amperage rating.

Product Information

Standard Information

• Brand: Meltric
• MPN: 33-68073

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 110/125/220/250 VAC
• Frequency Rating: 60 Hz
• Color: Blue
• Material: Polyester
• NEMA Rating: NEMA 3R
• IP Rating: IP54/IP55
• Temperature Rating: -40 to 140 degrees F
• Dimensions: 3.62 in diameter x 2.2 in length
