Product Description

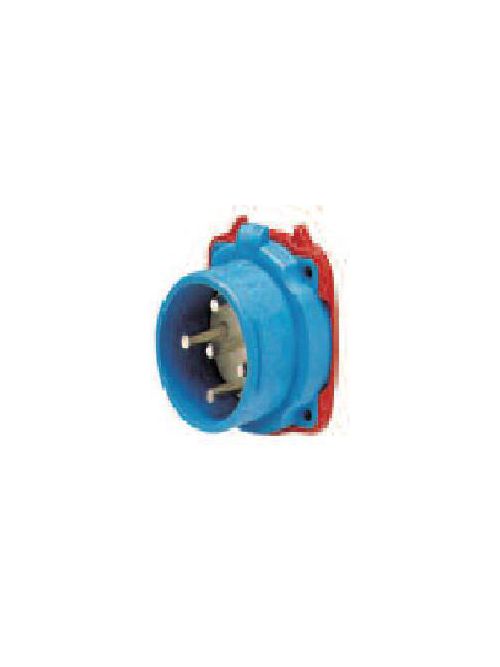

Meltric Corporation 33-68043 DS60 Inlet is designed for heavy-duty applications. It features a switch-rated design suitable for 60 Amps at 480 Volts AC. This inlet is ideal for connecting motors and welders in various industries such as metals, quarry, and automotive.
- Amperage rating of 60 AMP
- Voltage rating of 480 VAC
- 3 poles and 4 wires
Product Highlights
The DS60 Decontactor inlet provides a robust solution for high amperage equipment, ensuring a secure connection in challenging environments. Its design meets NEMA 3R specifications for outdoor use.
Product Information
Standard Information
-
Brand: Meltric
-
MPN: 33-68043
Technical Specifications
-
Amperage Rating: 60 AMPS
-
Voltage Rating: 480 VAC
-
Number of Poles: 3
-
Number of Wires: 4
-
Material: Polyester
-
Color: Blue
-
Frequency Rating: 60 Hz
-
Temperature Rating: -40 to 140 degrees F
-
Enclosure Rating: IP54/IP55
-
Dimensions: 3.77 inches height x 3.44 inches depth
-
Application: Heavy industry and high amperage equipment applications
-
Standards/Approvals: CE Certified, UL Listed, CSA Certified
