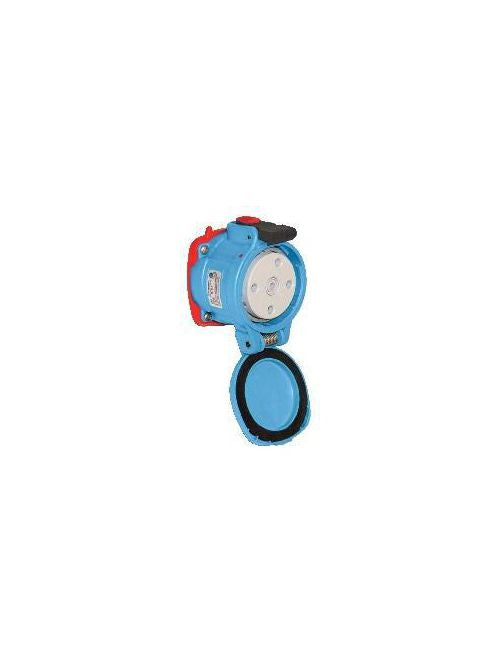

Meltric 33-64043 DS60 Receptacle 60A 3 Pole 4 Wire NEMA 3R

Product Description

The Meltric Corporation 33-64043 DS60 receptacle is designed for heavy-duty applications. It is a decontactor rated switch and is suitable for use in tough environments. This receptacle supports voltage ratings of up to four hundred eighty VAC and a maximum amperage rating of sixty amps.

• Designed for three-phase applications.
• Constructed from durable polyester material.
• Built-in IP54/IP55 enclosure for outdoor safety.

Product Highlights

This unit is ideal for connecting motors and welders in industrial settings such as metals, quarry operations, and automotive usage.

Product Information

Standard Information

• Manufacturer: Meltric
• MPN: 33-64043

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 480 VAC
• Phase: 3
• Material: Polyester
• Number of Poles: 3
• Enclosure Rating: NEMA 3R
• Frequency Rating: 60 Hz
• Dimensions: 4.74 inches H x 4.5 inches D
• Temperature Rating: -40 to 140 degrees F
• Horsepower Rating: 25 hp
• Wire Size: 10 to 2 AWG
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified
