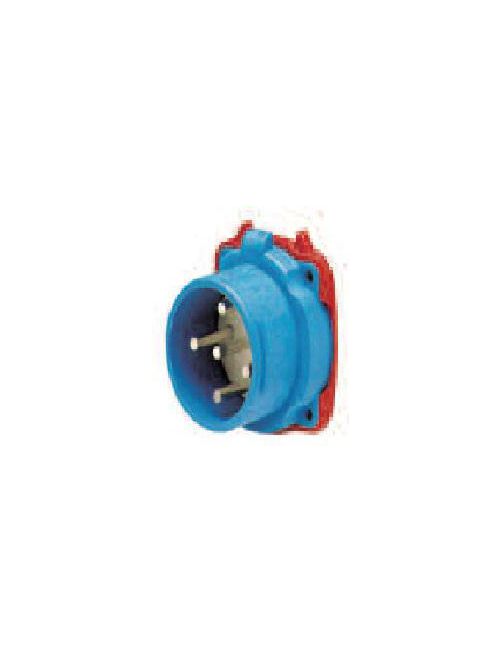

Meltric 33-38043 DS30 Inlet Switch Rated Male Inlet 30A Replacement MPN

Brand: MELTRIC
SKU: 33-38043
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$158.83
$158.83
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

Meltric 33-38043 is a DS30 inlet designed for heavy-duty applications. This product is rated for a maximum amperage of 30 amps and a voltage of 480 VAC. It accommodates wire sizes ranging from 14 to 6 AWG. Built for durability, it features a polyester body with a NEMA rating of 3R. This product provides safe and efficient electrical connections in industrial settings.

  • Voltage rating: 480 VAC
  • Temperature range: -40 to 140 degrees F
  • Three pole, four wire configuration

Product Highlights

Ideal for industry applications, this inlet connects heavy machinery and power systems effectively. Its design ensures a secure connection, reducing the risk of accidental disconnections.

Product Information

Standard Information

  • Brand: Meltric
  • Manufacturer PN: 33-38043

Technical Specifications

  • Amperage Rating: 30 A
  • Voltage Rating: 480 VAC
  • Enclosure Rating: IP54/IP55
  • Material: Polyester
  • Color: Blue
  • Dimensions: 3.03 inches Diameter x 2.8 inches Length
  • Number of Poles: 3
  • Number of Wires: 4
  • Frequency Rating: 60 Hz
  • Temperature Rating: -40 to 140 degrees F
  • Standards/Approvals: ARRA Compliant, RoHS Compliant, UL Certified
