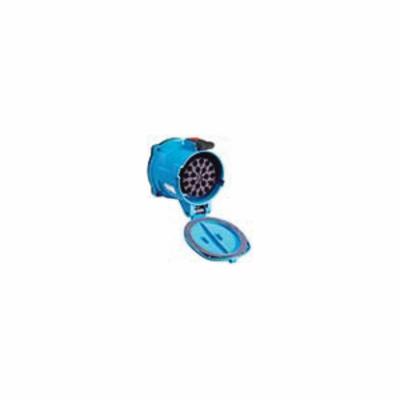

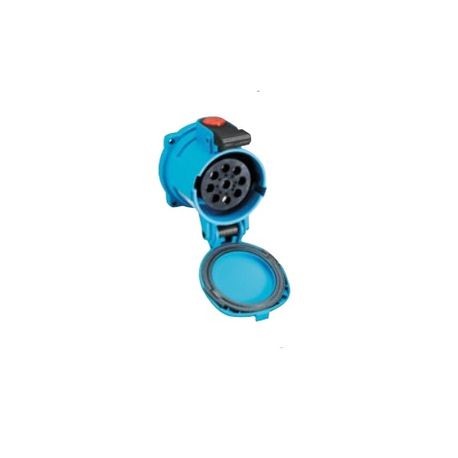

MELTRIC 17-64200 DN20C Multi-Pin Female Receptacle, 220/250 VDC, 20 A, 20 Poles, Blue

Product Description

The MELTRIC 17-64200 DN20C Multi-Pin Female Receptacle is designed for multiple control and power applications. This receptacle operates at 220/250 VDC and features a current rating of 20 A with 20 poles. The IP54/IP55 rating indicates protection against dust and moisture. It is suited for both indoor and outdoor use.

• Rated for 20 amperes and 220/250 volts DC
• Constructed with a durable metal enclosure
• Designed for a wide range of control and power applications

Product Highlights

This receptacle is ideal for industrial settings where reliable power connections are essential. Its compact size allows for easy installation in various environments.

Product Information

Standard Information

• Manufacturer: Meltric Corporation
• UPC: 78447400123

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 220/250 VDC
• Number of Poles: 20
• Material: Metal
• Dimensions: 4.33 in Dia x 4.6 in L
• Color: Blue
• Enclosure: IP54/IP55
• Temperature Rating: -40 to 140 deg F
• Terminal Type: Screw
• Series: DN20C
• Application: For use in a wide variety of control and power applications
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA Certified, CE Certified
