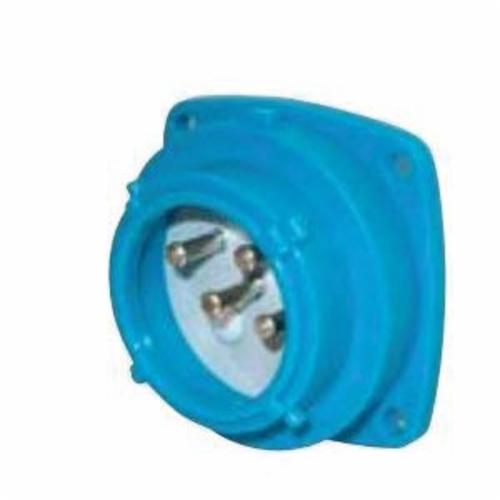

MELTRIC 01-N8043 MELTRIC PN INLET 255/277/440/480 VAC

Product Description

The MELTRIC 01-N8043 is a standard duty male inlet designed for use in various applications. It operates at voltages of 255, 277, 440, and 480 VAC and has a rating of 20 A. This device features a compact design suited for small equipment, offering both safety and performance.

• Rated for 20 A and suitable for multiple voltage levels.
• IP66/IP67 rated enclosure for protection against dust and water.
• Constructed from durable polyester for use in harsh environments.

Product Highlights

This male inlet is ideal for applications requiring reliable electrical connectivity in limited spaces. Its robust construction allows it to withstand extreme temperatures.

Product Information

Standard Information

• Manufacturer: Meltric Corporation
• MPN: 01-N8043

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 255/277/440/480 VAC
• Frequency Rating: 60 Hz
• Number of Poles: 3
• Number of Wires: 4
• Enclosure: IP66/IP67
• Temperature Rating: -40 to 140 degrees Fahrenheit
• Dimensions: 2.2 in diameter x 1.06 in length
• Material: Polyester
• Terminal Type: Screw
• Series: PN20
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, CSA Certified, CE Certified, IEC Certified
