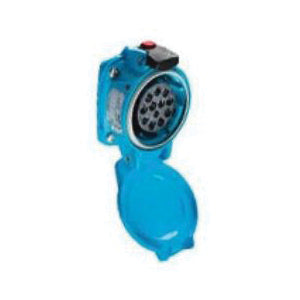

MELTRIC 01-N4043-142 PN20 Receptacle 255/277/440/480 VAC 20 A

Product Description

MELTRIC 01-N4043-142 PN20 Receptacle is a compact female flush mount device suitable for multiple voltage applications up to 480 VAC. This standard duty receptacle is designed for limited space and small equipment use. It offers high durability in harsh environments.

• Voltage Rating: 255/277/440/480 VAC
• Amperage Rating: 20 A
• IP66/IP67 enclosure for environmental protection

Product Highlights

This product ensures reliable connections in demanding settings, and features advanced watertightness ideal for washdown duty applications.

Product Information

Standard Information

• Manufacturer: Meltric Corporation
• UPC: 784474685351

Technical Specifications

• Type: Compact Female Flush Mount
• Color: Blue
• Dimensions: 3.03 in H x 2.31 in W x 2.05 in D
• Material: PBT
• Number of Poles: 3
• Number of Wires: 4
• Frequency Rating: 60 Hz
• Temperature Rating: -40 to 140 deg F
• Application: Limited Space and Small Equipment Applications
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1682, CSA C22.2 No. 182.1, IEC 60309-1, CE Certified
