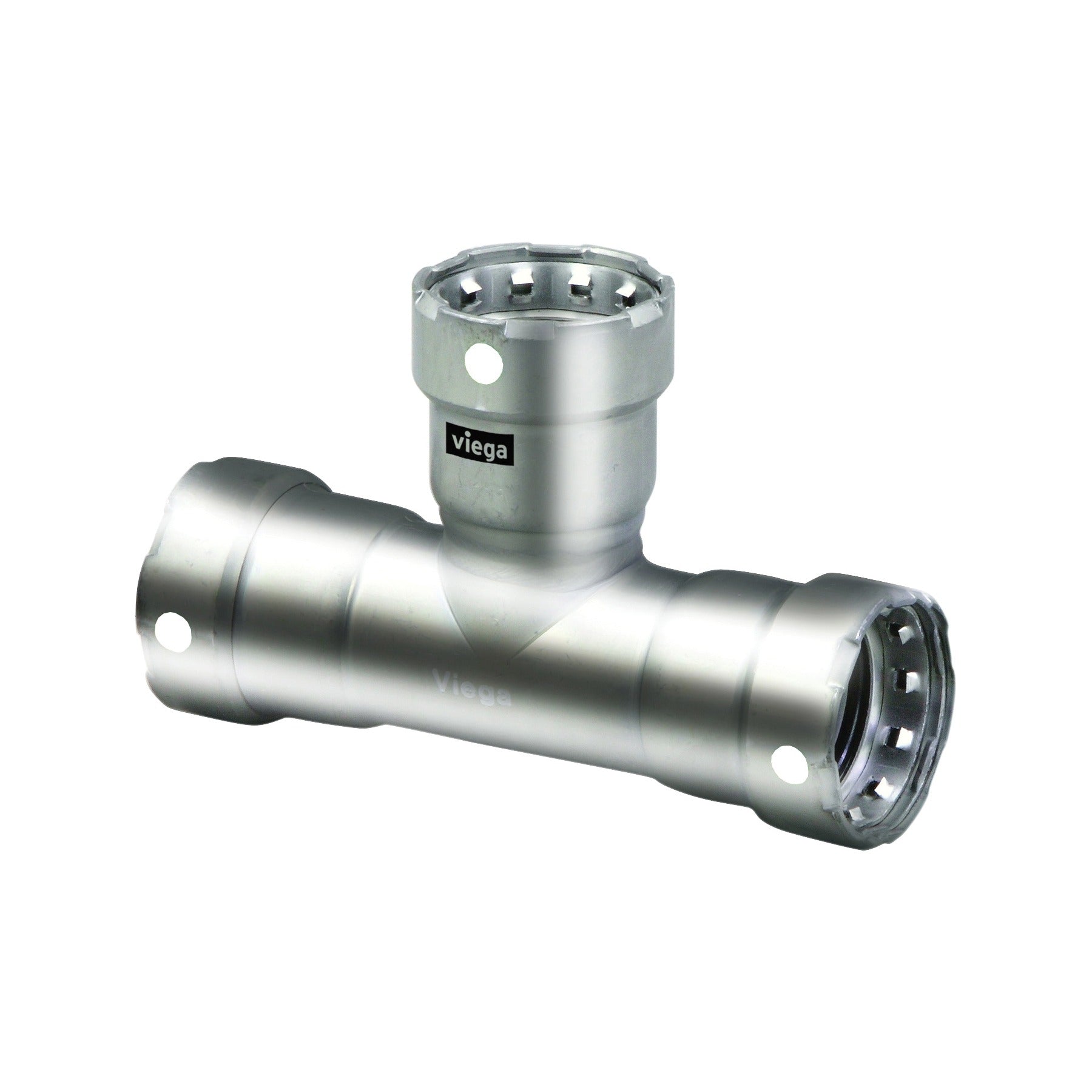

Megapress 95110 3/4 in Press Tee 304 Stainless Steel

Product Description

The MEGAPRESS 95110 is a 3/4-inch press tee fitting manufactured from 304 stainless steel, designed for tool-based press connections on Schedule 10 through Schedule 40 stainless steel pipe. Part of the Model 4118 series by Viega, this fitting uses an FKM sealing element to create a reliable, leak-free joint without open flame or welding. It carries a pressure rating of 200 psi and an operating temperature range of 0 to 250 degrees F. Licensed plumbers and pipefitters working on commercial and industrial process piping systems are the primary installers. The included white-dot FKM sealing element is pre-installed, simplifying assembly and reducing potential for field errors.

This fitting is suited for both commercial and industrial piping applications where stainless steel pipe is required. It is engineered to handle a range of media including process water, diesel fuel, lube oil, ammonia, and low-pressure steam. The press-style end connection eliminates the need for threading, soldering, or welding, making it a practical choice for tight spaces or environments where open flame is restricted. It is manufactured in Germany and intended for use in complete MegaPress Stainless 304 press systems.

Key Features

• 304 stainless steel body withstands harsh chemical and environmental exposure
• FKM sealing element rated for 0 to 250 degrees F and up to 200 psi
• Press-style connection compatible with Schedule 10 to Schedule 40 stainless steel pipe
• White-dot FKM sealing element is pre-installed at the factory
• No flame, threading, or welding required during installation
• Suitable for process water, diesel fuel, lube oil, ammonia, and low-pressure steam service

Compatibility

Designed for use with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe as part of a complete Viega MegaPress Stainless 304 press system in commercial and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter using a compatible press tool approved for MegaPress stainless fittings. Depressurize and drain the piping system fully before making any connections or modifications. Verify that pipe ends are clean, deburred, and cut square to the proper depth before pressing. Follow applicable plumbing codes including IPC requirements for stainless steel press systems.
