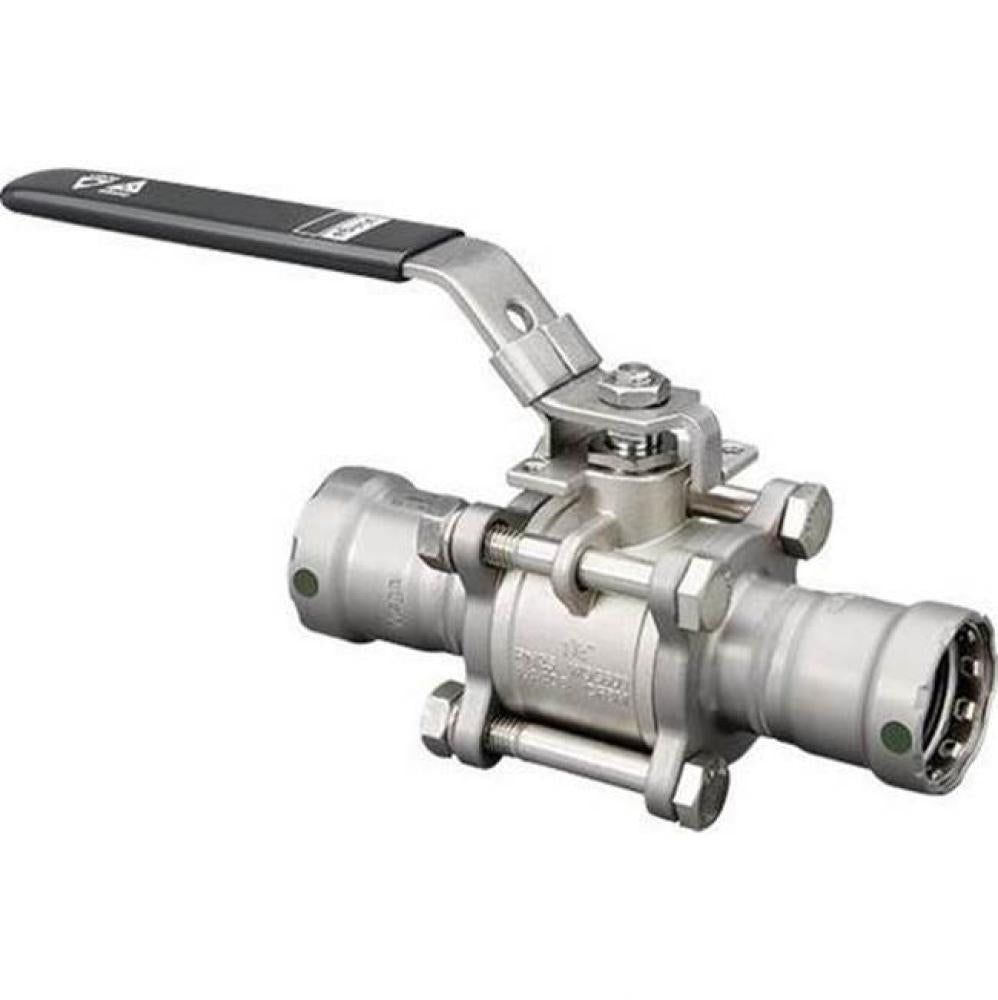

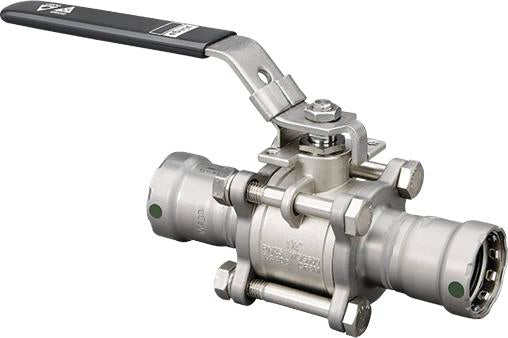

Megapress 28504 Model 4875.8 3-Piece Ball Valve, 1-1/2 in Nominal, Press End Style

Product Description

The MEGAPRESS 28504 Model 4875.8 3-Piece Ball Valve features a 1-1/2 in nominal size and press end style. Designed for use with Sch.5 to Sch.40 carbon steel pipe, this valve is constructed with a 316 stainless steel body and a locking handle actuator. It is suitable for various media including water, diesel fuel, lube oil, and gases.

• 3-Piece construction
• Full Port design
• Locking Handle Actuator

Product Highlights

The MEGAPRESS 28504 ball valve offers a reliable solution for connecting Schedule 5 to Schedule 40 carbon steel pipes with its Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 28504
• Country of Origin: United States

Technical Specifications

• Nominal Size: 1-1/2 in
• End Style: Press
• Pressure: 250 psi
• Temperature Range: 0 to 250 deg F
• Port Type: Full Port
• Media: Water/Diesel Fuel/Lube Oil/Ammonia/Low Pressure Steam/Fluids/Gases
• Actuator: Locking Handle
• Ball Material: 316 Stainless Steel
• Top to Inlet Center: 3.89 in
• Body Material: 316 Stainless Steel
• Stem Trim: 316 Stainless Steel
• Softgoods: EPDM/PTFE
• Coating: Zinc Nickel Coated
• Valve Operator: Lockable Metal Handle
• Minimum Operating Temperature: 0 00baF
• Maximum Operating Temperature: 250 00baF
• Handle: 304 Stainless Steel
• Material: 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Seal Material: EPDM
• Connection Type: Press X Press
• Seal: EPDM
• A: 2.92 in
• L: 4.79 in
• L1: 7.54 in
• H: 3.890 in
• H1: 1.83 in
• Sub Brand: MegaPress 00ae
• Item Name: Ball Valve
• Type: 3-Piece
• Series/Model: 4875.8
• Pressure Rating: 250 PSI
• Temperature Rating: 0 - 250 DEG F
• Operator Type: Locking Metal Handle
• Handle Material: 304 Stainless Steel
• Seat Material: RPTFE
• Industry Standards: ASME B31, MSS-SP110, IAPMO Z1157 Certified
• Other Physical Dimension: 9.58 IN Inlet To Outlet Length, 3.89 IN Top To Inlet Center
• Viega Part#: 28504
• Size: 1-1/2
• Family: Megapress
