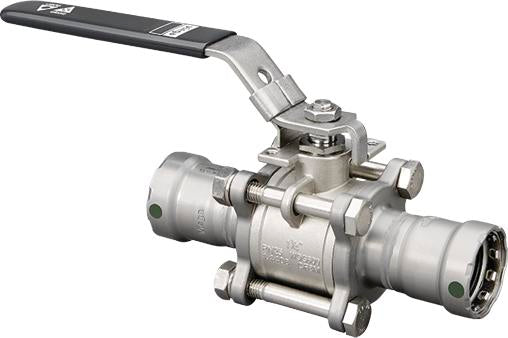

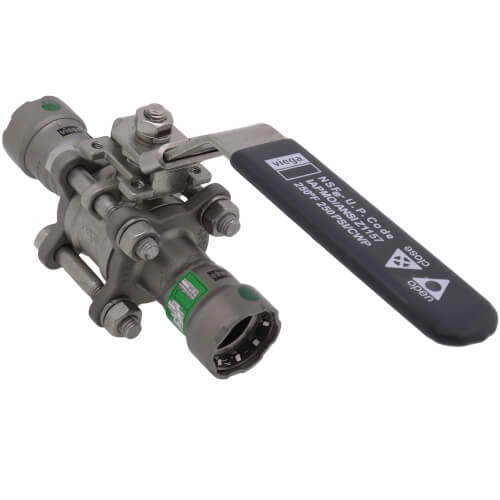

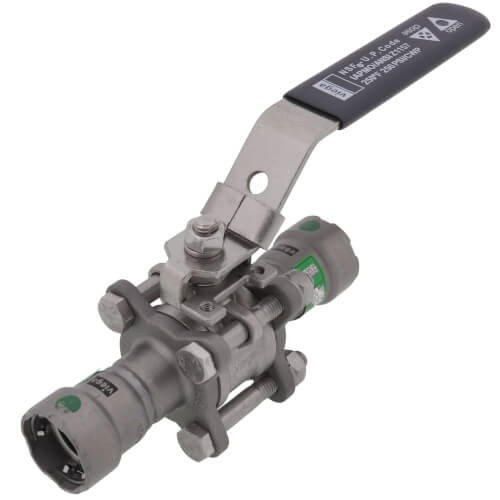

Megapress 28500 Model 4875.8 3-piece Ball Valve, 1/2 in

Product Description

The MEGAPRESS 28500 Model 4875.8 3-Piece Ball Valve features a 316 stainless steel body and press end style. Designed for use with Sch.5 to Sch.40 carbon steel pipe, it includes a locking handle actuator and EPDM/PTFE softgoods. Suitable for water, diesel fuel, lube oil, ammonia, low-pressure steam, fluids, and gases.

• 3-Piece construction
• Full Port design
• Locking Handle Actuator

Product Highlights

Features Smart Connect technology for easy identification of unpressed connections. Approved for more applications than any other carbon steel pipe press fitting system.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 28500
• Country of Origin: United States

Technical Specifications

• Nominal Size: 1/2 in
• End Connection: Press
• Body Material: 316 Stainless Steel
• Port Type: Full
• Pressure Rating: 250 psi
• Temp. Range: 0 to 250 deg F
• Top to Inlet Center: 2.85 in
• Softgoods Material: EPDM/PTFE
• Stem Material: 316 Stainless Steel
• Actuator: Locking Handle
• Media: Water/Diesel Fuel/Lube Oil/Ammonia/Low Pressure Steam/Fluids/Gases
• Coating: Zinc Nickel
• Size: 1/2"
• Seal: EPDM
• Material: 316 Stainless Steel
• Valve Operator: lockable metal handle
• Operating Temperature [Min]: 0 00baF
• Operating Temperature [Max]: 250 00baF
• Operating Pressure [Max]: 250 psi
• Handle: 304 Stainless Steel
• Ball Material: 316 Stainless Steel
• Seal Material: EPDM
• A: 1.72 in
• L: 2.80 in
• L1: 5.88 in
• H: 2.850 in
• H1: 1.04 in
• Actuator Type: Locking Handle
• Finish: Zinc Nickel Coated
• Series: Model 4875.8
• Temperature Rating: 0 to 250 deg F
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
• Connection Type: Press
