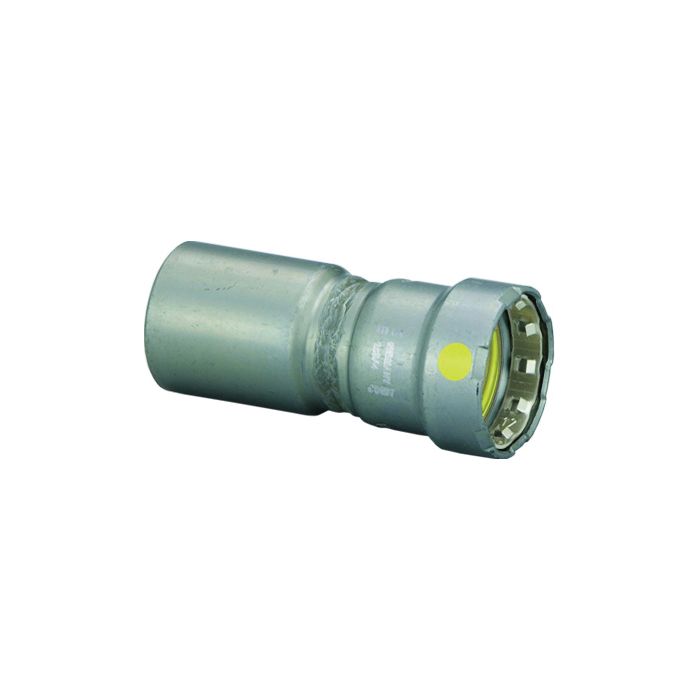

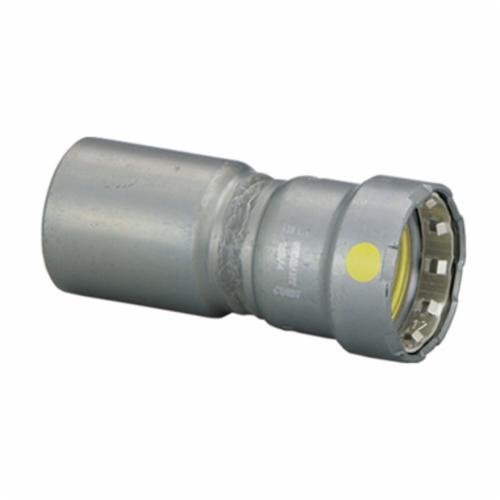

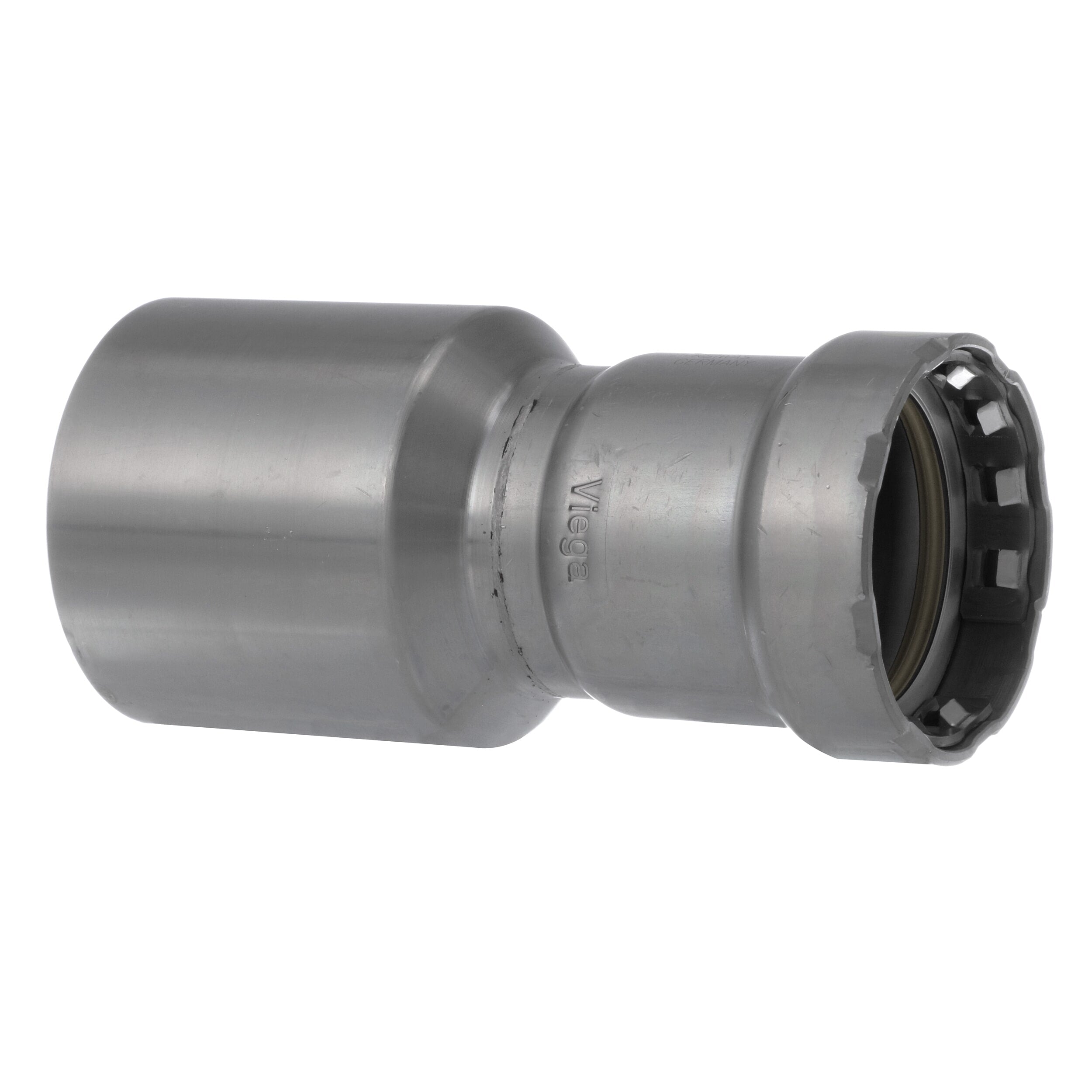

Megapress 26041 Reducer Pipe Reducing Coupling Ftg X Prs 2 x 1-1/4 in

Product Description

The Megapress 26041 Pipe Reducer is a carbon steel reducing coupling designed for gas applications. This fitting features a 2 x 1-1/4 inch nominal size with Fitting x Press end styles, suitable for Schedule 5 to Schedule 40 black iron pipe. It operates within a temperature range of -40 to 180 deg F and incorporates the patented Smart Connect feature and HNBR sealing elements. This reducer simplifies installations by eliminating the need for threading equipment and cutting oils.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect feature

Product Highlights

Carbon steel construction with HNBR sealing for gas applications.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26041
• Country of Origin: Germany

Technical Specifications

• MPN: 26041
• Category: Steel Press Fittings
• Manufacturer: VIEGA
• Unit of Measure: EA
• Nominal Size: 2 x 1-1/4 in
• Temperature Rating: -40 To 180 deg F
• Brand: MEGAPRESS
• Model: 6615.1
• Material: Carbon Steel
• Connection Type: Street, press connection
• Sealing Elements: HNBR
• Fitting/Connector Type: Reducing Coupling
• End Style: Fitting x Press
• Domestic/Import: Import
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Country of Origin: DE
• Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
