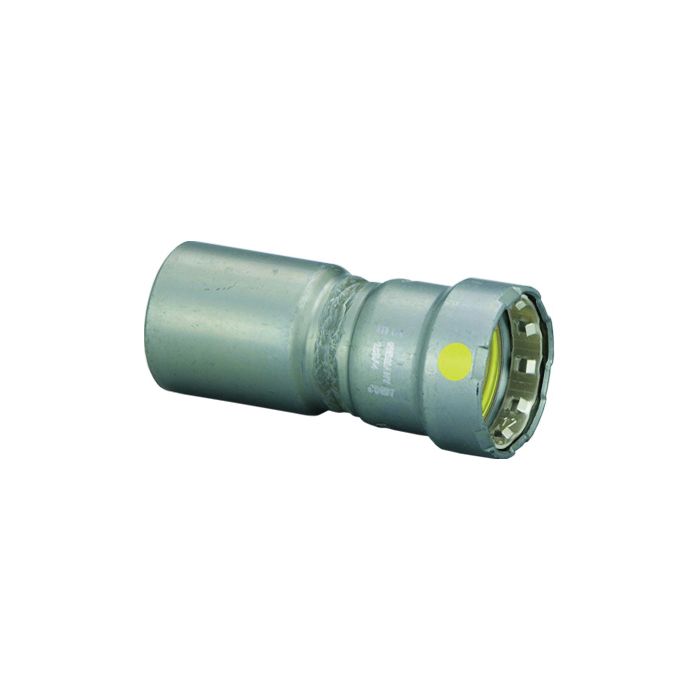

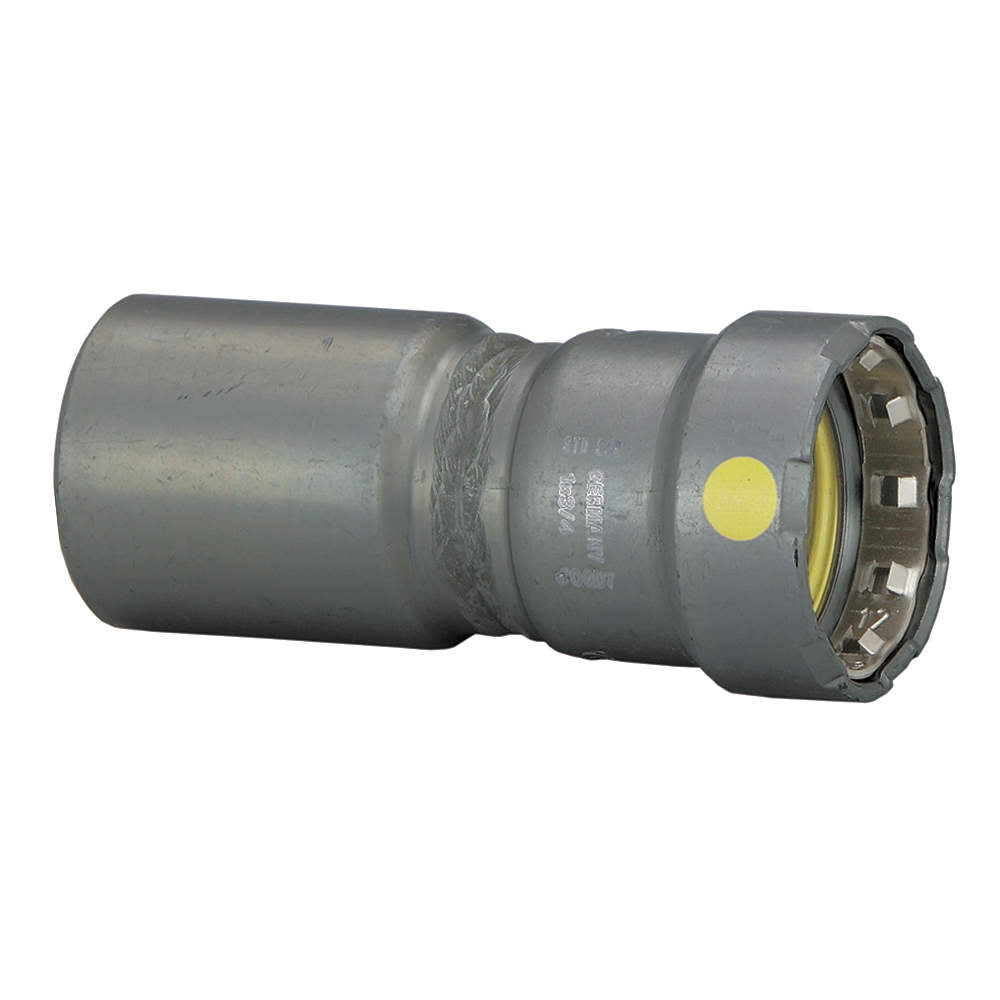

Megapress 26031 Pipe reducer 1-1/2 x 1 in (FTG x Press)

Product Description

Megapress 26031 is a MegaPressG carbon steel pipe reducer that reduces from 1-1/2 inch to 1 inch with a female thread to press (FTG x P) connection. The fitting incorporates an HNBR sealing element and Viega Smart Connect feature, measures about 4.16 inches long, and is rated for -40 to 180°F. It is suitable for gas, fuel, compressed air and vacuum and works with Schedule 5 to Schedule 40 black iron pipe.

• Carbon steel construction with HNBR sealing element and Viega Smart Connect
• FTG x Press connection, nominal size 1-1/2 x 1 in, overall length approximately 4.16 in
• Operating temperature -40 to 180°F; maximum operating pressure 125 psi; compatible with Schedule 5 to Schedule 40 black iron pipe

Product Highlights

1-1/2 x 1 in carbon steel reducer; FTG x press; HNBR seal; -40 to 180°F; 125 psi

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26031
• Country of Origin: Import

Technical Specifications

• Brand: Megapress (Viega)
• MPN: 26031
• Model: MegaPressG 26031
• Nominal Size: 1-1/2 x 1 in
• Connection Type: FTG (female thread) x Press
• End Style: Fitting x Press
• Material: Carbon steel
• Seal Material: HNBR
• Smart Connect Feature: Viega Smart Connect
• Overall Length: 4.16 in
• Weight: 0.79 lb
• Temperature Rating: -40 to 180 deg F
• Max Operating Pressure: 125 psi
• Finish: Zinc nickel plated
• Applications: Natural gas, LP gas, diesel fuel, compressed air, vacuum
• Compatibility: Schedule 5 to Schedule 40 black iron pipe
• Includes: HNBR sealing element (yellow dot)
• Country of Origin: DE
• UPC: 691514260310
• Standards and Approvals: ABS Listed; ANSI LC4/CSA 6.32; ASME B31; CRN OA14541.6; CSA B149.1; FM 1920; GL Listed; LR Certified; NFPA 13/13D/13R/31/54/58
