Megapress 26016 reducer pipe reducing coupling 1-1/4 x 1 in nominal ftg x prs

Product Description

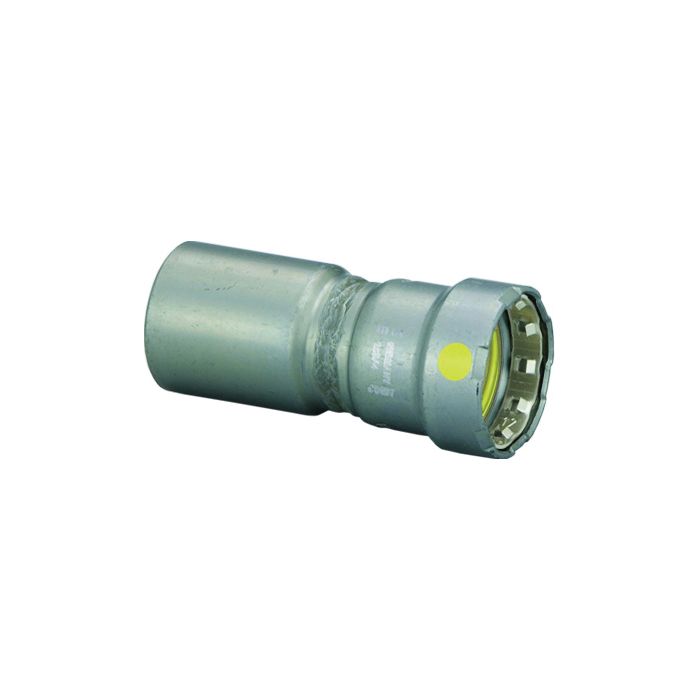

The MEGAPRESS 26016 Pipe Reducer is a carbon steel reducing coupling fitting/connector designed for gas applications. It features a 1-1/4 x 1 inch nominal size with a Fitting x Press end style. This reducer is suitable for use with Schedule 5 to Schedule 40 black iron pipe, operating within a temperature range of -40 to 180 deg F. It reduces installation time by eliminating the need for messy cutting oils and is compatible with natural gas, LP gas, diesel fuel, compressed air, and vacuum systems.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed for installation.
• Features patented Viega Smart Connect technology.

Product Highlights

Carbon steel press system for gas applications, ensuring quick and secure connections with HNBR sealing.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26016
• Country of Origin: Import

Technical Specifications

• Manufacturer: VIEGA
• Category: Steel Press Fittings
• Unit of Measure: EA
• MPN: 26016
• Nominal Size: 1-1/4 x 1 in
• Temperature Rating: -40 To 180 deg F
• Brand: MEGAPRESS
• A: 2.63 in
• Fitting/Connector Type: Reducing Coupling
• End Style: Fitting x Press
• Material: Carbon Steel
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Domestic/Import: Import
• Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
• Model Number: 6615.1
• Series: MEGAPRESS
