Megapress 26001 Reducer Pipe Reducing Coupling Ftg X Prs 3/4 x 1/2 in

Product Description

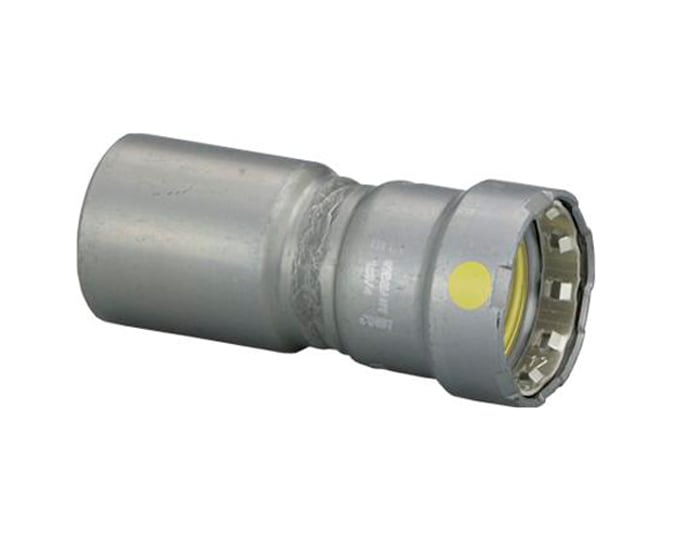

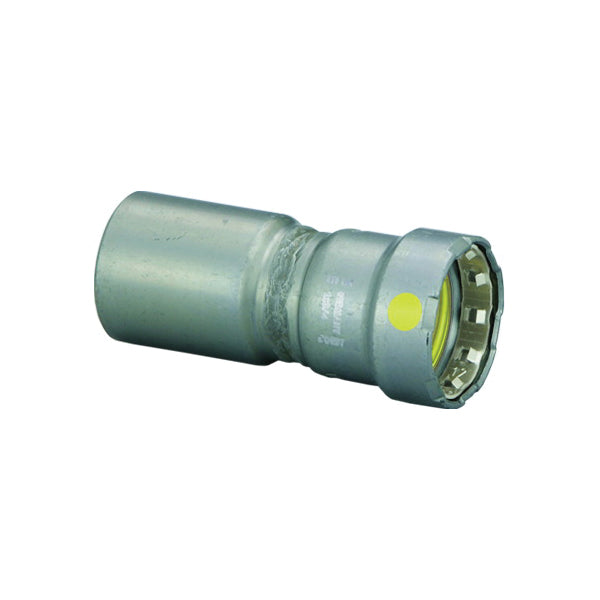

The MEGAPRESS 26001 Pipe Reducer is a carbon steel reducing coupling fitting with a 3/4 x 1/2 inch nominal size and Fitting x Press end style. It is rated for temperatures from -40 to 180 degrees F and measures 2.85 inches in length. This Viega MegaPressG system is designed for gas applications, compatible with Schedule 5 to Schedule 40 black iron pipe, and reduces installation time.

• Makes secure press connections in less than seven seconds
• Eliminates the need for oil or heavy threading equipment
• Compatible with Schedule 5 to Schedule 40 carbon steel piping systems

Product Highlights

This carbon steel reducer features the patented Viega Smart Connect feature, designed for gas applications with black iron pipe, reducing installation time.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26001
• Country of Origin: Germany

Technical Specifications

• MPN: 26001
• Brand: MEGAPRESS
• Manufacturer: VIEGA
• Category: Steel Press Fittings
• Nominal Size: 3/4 x 1/2 in
• End Style: Fitting x Press
• Material: Carbon Steel
• Temperature Rating: -40 to 180 deg F
• Length: 2.85 in
• Dimension A: 1.78 in
• Seal Material: HNBR
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
• Product Type: Reducer
