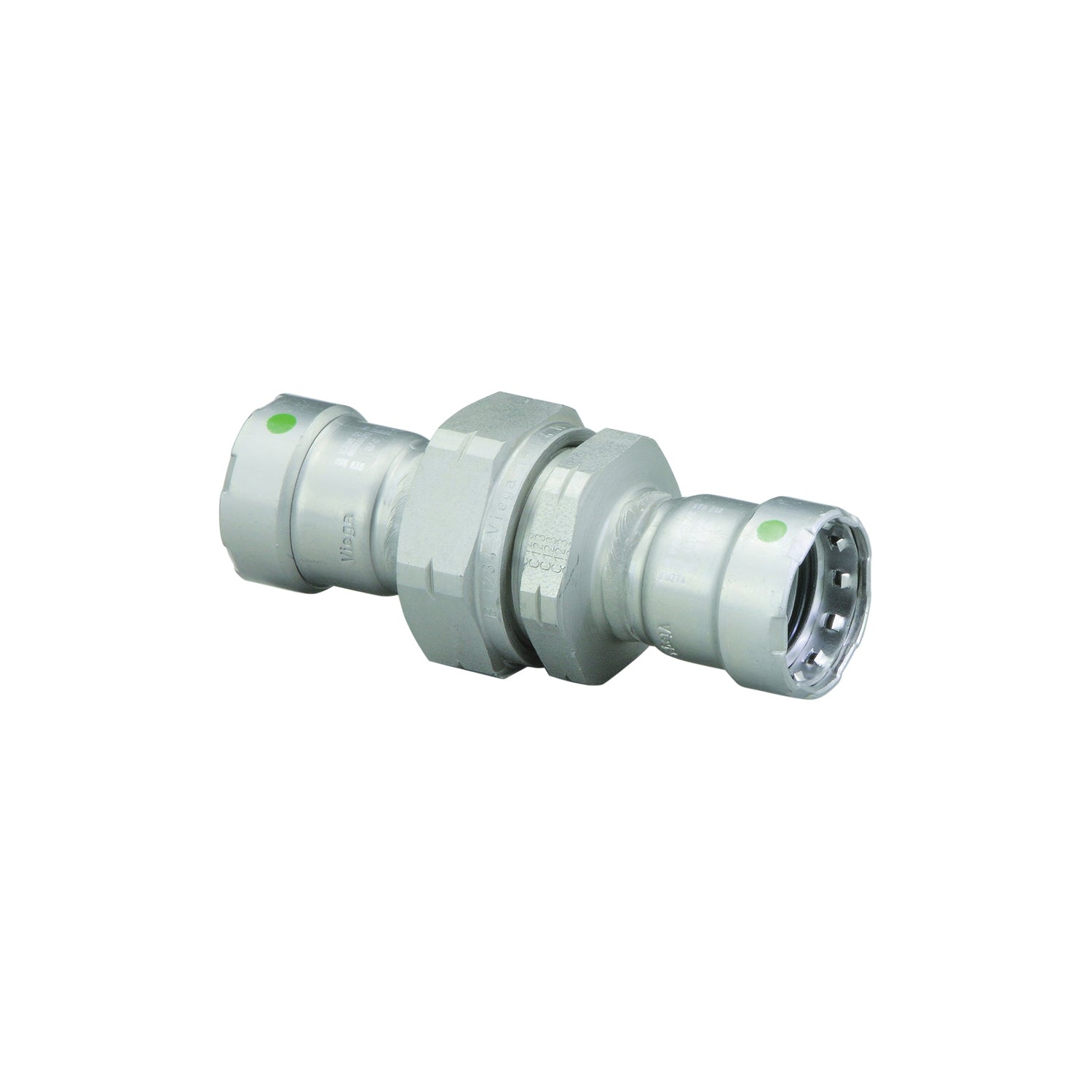

Megapress 25720 Model 4860 Pipe Union 1-1/2 in 49EU59

Product Description

The MegaPress 25720 is a Model 4860 Pipe Union designed for efficient pipe connections. Constructed from carbon steel with an EPDM seal, this 1-1/2 inch press-fit union is suitable for Schedule 5 to Schedule 40 black iron pipe. It operates within a temperature range of -40 to 180 degrees F and is ideal for compressed air, chilled water, hydronic heating, fire protection, solar, and low-pressure steam systems. This union facilitates secure press connections, reducing installation time.

• Makes secure press connections in less than seven seconds.
• Features patented Viega Smart Connect technology.
• Compatible with Schedule 5 to Schedule 40 carbon steel black iron pipe.

Product Highlights

This carbon steel press union offers quick, clean, and secure pipe connections for various industrial applications.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25720
• Country of Origin: Germany

Technical Specifications

• Brand: MegaPress
• Manufacturer: Viega
• MPN: 25720
• Model: 4860
• Fitting Type: Union
• Nominal Size: 1-1/2 in
• Connection Type: Press-Fit
• Material: Carbon Steel
• Seal Material: EPDM
• Operating Temperature Range: -40 To 180 deg F
• Maximum Operating Temperature: 250 Degrees F
• Max Operating Pressure: 200 psi
• Application: Compressed Air Systems, Chilled Water Systems, Hydronic Heating Systems, Fire Protection Systems, Solar Systems and Low Pressure Steam Systems
• Certifications: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
• Origin: Import
• Length: 6.63 in
• Dimension A: 2.89 in
• Dimension WS: 2.56 in
• Dimension WS1: 2.76 in
• Fitting Shape: Straight Union
• Finish: Zinc Nickel-Plated
• Pipe Compatibility: Schedule 5 to Schedule 40 black iron pipe
• Height: 2.750 Inch
• Width: 2.750 Inch
