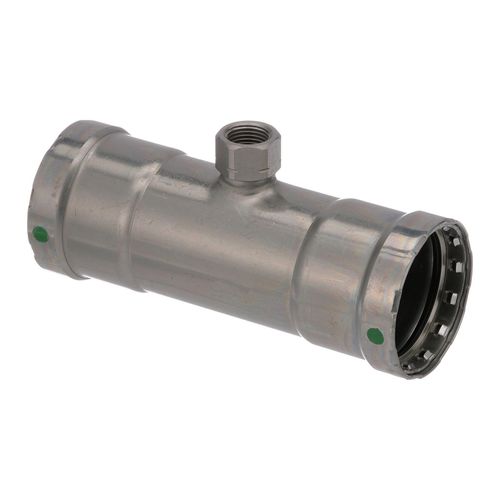

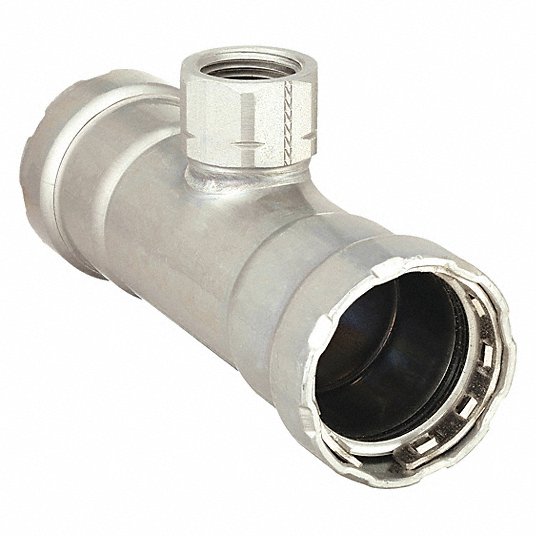

Megapress 25455 Tee 2 inches x 2 inches x 1/2 inches

Product Description

The MEGAPRESS 25455 is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air and fire sprinkler applications. Viega MegaPress fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 schedule 5 - schedule 40 black steel pipe.

• Makes secure connections in less than seven seconds
• No oil or heavy threading equipment needed
• More than 150 different configurations

Product Highlights

This carbon steel press system can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress fittings reduce installation time and eliminate messy cutting oils.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25455
• Country of Origin: United States

Technical Specifications

• Size: 2" x 2" x 1/2"
• Connection Type: Press x FNPT
• Material: Carbon Steel
• Application: Hydronic
• Brand: VIEGA
• Model: 25455
• Domestic/Import: Import
• End Style: Press x Press x FNPT
• Fitting/Connector Type: Tee
• Nominal Size: 2 x 2 x 1/2 In
• Temperature Rating: 0 To 250 deg F
• Fitting Shape: Tee (Run x Run x Branch)
• Fitting Material: Zinc Nickel-Plated Steel
• Finish: Zinc Nickel-Plated
• O-Ring Material: EPDM
• Temperature Range: 0 °F to 250 °F
• Connector Type: Adapter
• Compatible Tube Material: Steel
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Pipe Size: 2 in
• Fitting Side C Connection Type: FNPT
• Fitting Side C Pipe Size: 1/2 in
• Overall Length: 7-9/16 in
• Resistance Properties: Corrosion-Resistant
• For Media Type: Compressed Air; Non-Potable Water
• Standards: ABS; CRN 0A14541.5 A/B; FM; FM Class 1920; IAPMO PS 117; IAPMO/UMC; IAPMO/UPC; ICC-ES PMG-1124; ICC/IMC; NFPA 13; NFPA 13D; NFPA 13R; TSSA/ASME B
• Maximum Operating Pressure: 200 psi
• Fitting Size: 2 in Pipe x 2 in Pipe x 1/2 in Pipe
• UNSPSC: 40142605
